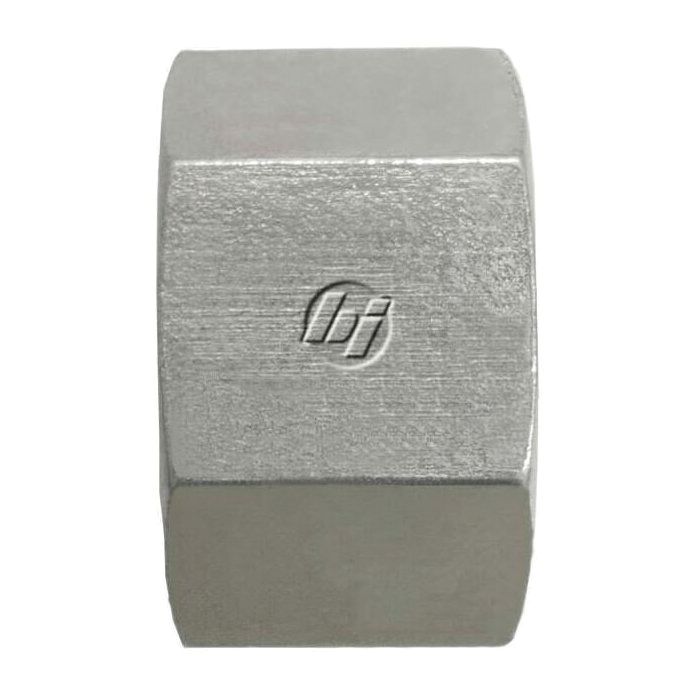

L10 (M16X1.5) MBT Tube Nut Stnls

Ask A Question

Description & Features

This L10 (M16X1.5) MBT Tube Nut Stnls is constructed from straight stainless steel and adheres to DIN 3870 and 8434-1 standards.

Designed for UM series applications, this metric tube nut features a M16x1,5 thread and accommodates a 10mm tube. It has a maximum dynamic pressure rating of 500 bar. The overall length is 15.5 mm, with an S1 dimension of 19. The D1 dimension is 10, and the L1 In dimension is 15.5.

SKU: D0318-L10-SS

Supplier Part Number (MPN): D0318-L10-SS

Specifications

Brand
BRENNAN
Additional Information
Light-Duty
Connection Type
Metric
Connection Type 1
Metric
Dimension Standards
DIN 3870, DIN 8434-1
Dimensions
0.61 in L
Fitting Type
Nut
Material
Stainless Steel
s1 Dimensions
19 mm
Series
D0318 Series
Thread Size
M16x1.5
Tube OD
10 mm
Type
L

Product Questions & Answers (1)

Question by: Daryl M on Oct 2, 2025, 12:02 PM
Reckon this'll hold up alright for a hydraulic setup pushing 500 bar? Just wanna make sure it can handle the pressure before I go and order it.
Answer by: Customer Support on Oct 4, 2025, 6:43 AM
This straight stainless steel tube nut is rated for a maximum dynamic pressure of 500 bar, so it should do the job.
