L06MBT-L06MBT STRAIGHT

Description & Features

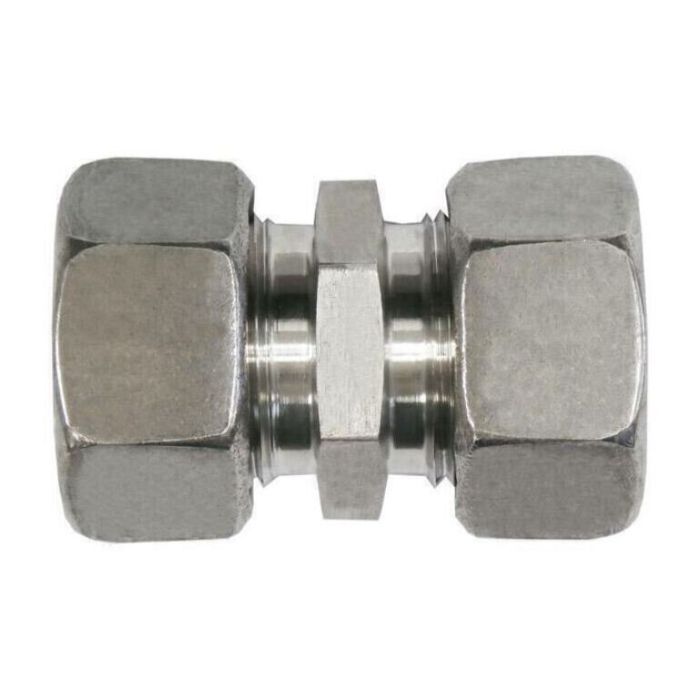

Designed for DIN metric tube compression connections, the L06MBT-L06MBT Straight is a steel union fitting that joins two 6mm OD light series tubes in a straight-through configuration. Both ends conform to DIN 2353 and ISO 8434-1 standards, with M12×1.5 threads and matching 14mm hex sizes across each connection.

Rated to 500 bar maximum dynamic pressure, this straight union is suited to demanding hydraulic circuits where a reliable, compact inline connection is required. The fitting measures 40mm in overall length, with a 24mm end-to-end body and a 10mm centerline length at each end. Raw material is straight steel, consistent with the Brennan Industries D2403-Equal series.

SKU: D2403-L06-L06

Supplier Part Number (MPN): D2403-L06-L06

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D2403-L06-L06	Product Weight 0.09 lbs

Product Questions & Answers (1)

Question by: Bonnie P on Apr 11, 2025, 8:55 PM

Will this fitting work with standard 6mm tubing, or does it have to be a specific type?

Answer by: Customer Support on Apr 13, 2025, 6:37 AM

This straight union fitting is designed to connect two 6mm outer diameter light series tubes conforming to DIN 2353 and ISO 8434-1 standards.
