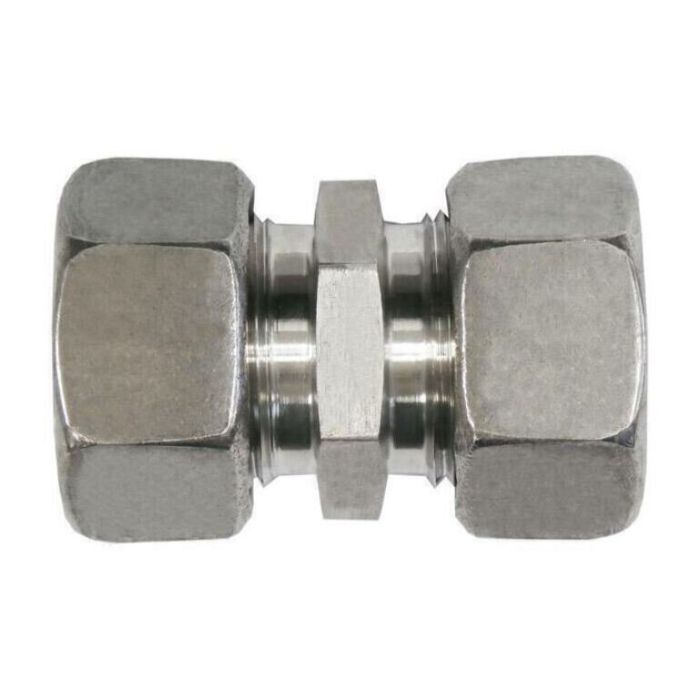

L18MBT-L18MBT STRAIGHT

Description & Features

This straight steel fitting features DIN Metric Tube Compression connections on both ends, adhering to DIN 2353 and ISO 8434-1 standards. Each connection is designed for a light 18mm tube OD and has a thread size of M26X1.5. The L18MBT-L18MBT STRAIGHT fitting is suitable for applications with a maximum dynamic pressure of 400 bar.

The centerline lengths are 16.0 mm, with an overall length of 50.0 mm. Both connection ends feature a 32.0 mm hex size.

SKU: D2403-L18-L18

Supplier Part Number (MPN): D2403-L18-L18

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D2403-L18-L18	Product Weight 0.49 lbs

Product Questions & Answers (1)

Question by: Howard W on May 12, 2025, 9:34 PM

What’s the deal with the pressure rating on this thing? I want to make sure it can handle what I'm throwin' at it.

Answer by: Customer Support on May 14, 2025, 8:25 AM

This fitting is rated for a maximum dynamic pressure of 400 bar, so verify your system's pressure stays within that limit for reliable performance.
