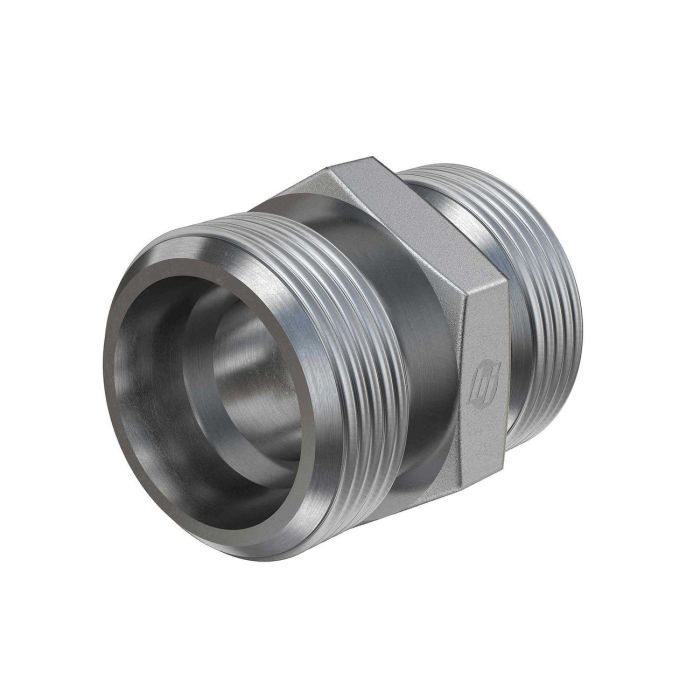

main product photo

30X2.0MM

Ask A Question

Description & Features

Designed for straight-through tube connections in hydraulic systems requiring metric fittings, this straight union fitting ships without tube nut and sleeve and features identical Male Metric 24-degree DIN seat ends on both sides. Both connections thread at M30x2.0 and are sized for light 22mm tube OD, conforming to DIN 2353 and ISO 8434-1 standards.

Constructed from straight steel, the 30x2.0mm fitting carries a maximum dynamic pressure rating of 250 bar, making it well suited for medium-to-high pressure hydraulic circuits. Overall lengths of 35.0mm (L) and 20.0mm (L2) keep the assembly compact. Brennan Industries manufactures this fitting as part of the D2403-Equal-X series. California residents should note applicable Prop 65 warnings associated with this product.

SKU: D2403-L22-L22-X

Supplier Part Number (MPN): D2403-L22-L22-X

Specifications

Brand
BRENNAN
Additional Information
Light-Duty, Without Nut and Sleeve
Connection Size 1
L22
Connection Size 2
22 mm
Connection Type
Male Metric
Connection Type 1
Male DIN Tube
Connection Type 2
Male DIN Tube
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
35 mm L
Finish
Nickel/Zinc-Plated
Fitting Type
Union
Hex Size
32 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Series
D2403-EQUAL-X Series
Thread Size
M30x2

Product Questions & Answers (1)

Question by: Hank F on Oct 8, 2025, 7:42 AM
Just wanna make sure – this fitting'll work with a standard 22mm OD tube, right?
Answer by: Customer Support on Oct 10, 2025, 6:34 AM
This straight union fitting is designed for hydraulic systems needing metric fittings and it will indeed work with a standard 22mm outer diameter tube. It's made to fit light 22mm tube OD according to DIN 2353 and ISO 8434-1 standards.
