BRENNAN 10MM SS UNION

Description & Features

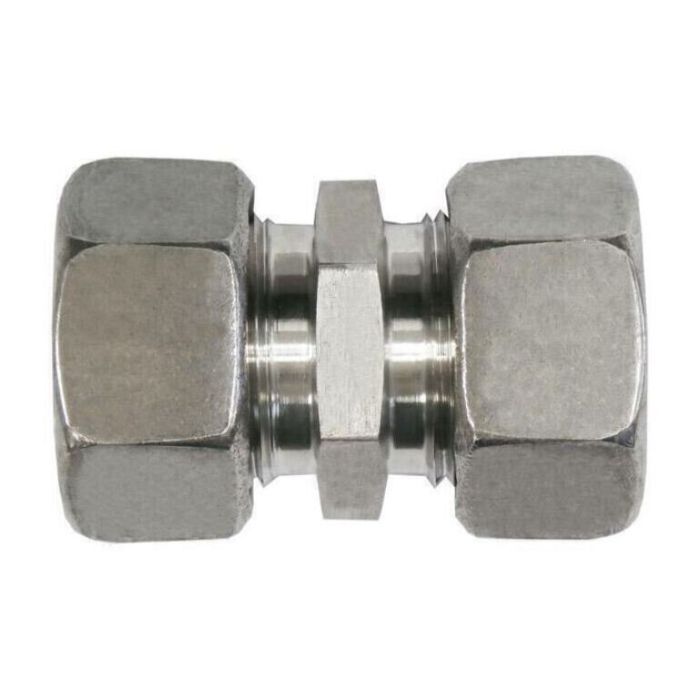

A straight union fitting designed for heavy 10mm OD tube, the Brennan 10MM SS Union connects equal DIN metric tube compression ends on both sides, conforming to DIN 2353 and ISO 8434-1 standards. Both connections use an M18x1.5 thread and are rated for a maximum dynamic pressure of 630 bar, making this fitting well-suited for high-pressure hydraulic circuits.

Manufactured from stainless steel, this union is built for environments where corrosion resistance is a priority alongside mechanical performance. With an overall length of 50mm and 22mm hex flats on each end, it installs cleanly with standard tooling. The Brennan D2403-Equal series provides consistent geometry and reliable sealing across metric tube line assemblies.

SKU: D2403-S10-S10-SS

Supplier Part Number (MPN): D2403-S10-S10-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D2403-S10-S10-SS	Product Weight 0.27 lbs

Product Questions & Answers (1)

Question by: Dwight D on Aug 15, 2025, 6:28 PM

Wondering if this union fitting will work with standard 10mm hydraulic tubing?

Answer by: Customer Support on Aug 17, 2025, 7:49 AM

This union is specifically designed for heavy 10mm OD (outer diameter) tubing that meets DIN 2353 and ISO 8434-1 standards, so as long as your tubing conforms to those specs, you should be good to go.
