BRENNAN S16MBT-S16MBT Straight Stnls

Description & Features

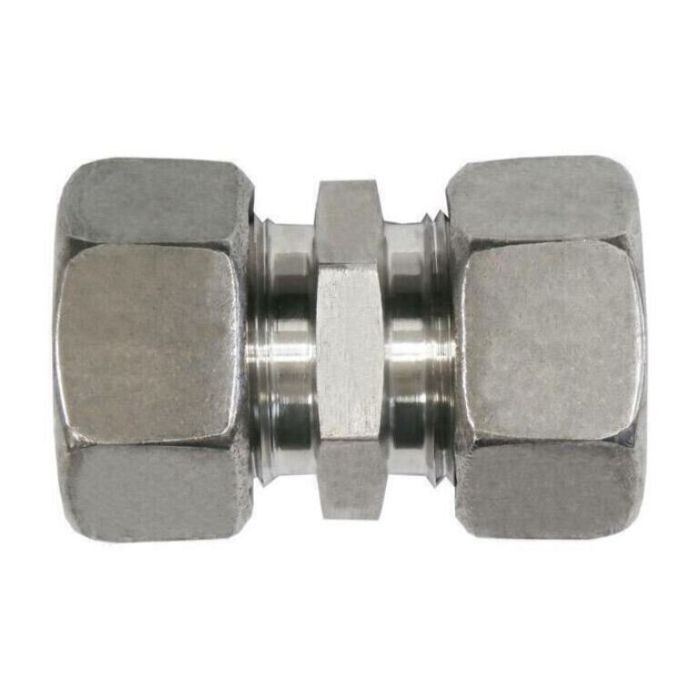

Constructed from stainless steel, the BRENNAN S16MBT-S16MBT Straight Stnls is a straight union fitting designed for heavy 16mm OD tube connections on both ends. Both ports use DIN Metric Tube Compression fittings conforming to DIN 2353 and ISO 8434-1, with M24x1.5 threads. The inline configuration keeps the centerline length compact at 21mm, with an overall length of 58mm.

Rated to a maximum dynamic pressure of 630 bar, this fitting is well suited to high-pressure hydraulic circuits where a reliable straight union connection is required. The stainless steel construction makes it a practical choice for applications where corrosion resistance is a priority. Both hex flats measure 30mm, accommodating standard wrenching during installation.

SKU: D2403-S16-S16-SS

Supplier Part Number (MPN): D2403-S16-S16-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D2403-S16-S16-SS	Product Weight 0.55 lbs

Product Questions & Answers (1)

Question by: Rhonda S on May 25, 2025, 7:07 AM

What size wrench do I need to tighten this fitting down properly?

Answer by: Customer Support on May 26, 2025, 3:46 PM

This Brennan straight fitting requires a 30mm wrench on both hex flats for secure installation.
