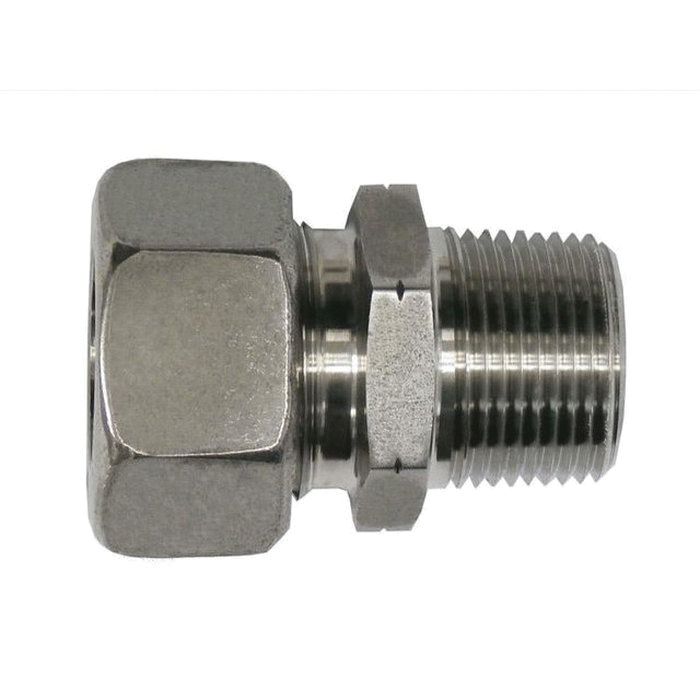

L15MBT-08MP STRAIGHT

Description & Features

Manufactured by Brennan Industries, the L15MBT-08MP Straight is a straight male connector fitting designed for use in hydraulic fluid conveyance lines where a reliable, leak-resistant threaded connection is required. The "08" designation indicates a nominal size of 1/2 inch, consistent with the L15 series thread configuration.

Brennan Industries fittings in this series are commonly used in mobile and industrial hydraulic circuits, providing a direct inline connection without angular offset. The straight configuration suits installations where hose or tube routing runs parallel to the port axis.

SKU: D2404-L15-08

Supplier Part Number (MPN): D2404-L15-08

Specifications

Brand BRENNAN	Additional Information Light-Duty	Connection Size 1 L15	Connection Size 2 1/2 in	Connection Type Metric, MNPT	Connection Type 1 DIN Tube	Connection Type 2 Male NPT	Dimension Standards ANSI/ASME B1.20.1, DIN 2353	Dimensions 1.831 in L	Finish Nickel/Zinc-Plated	Fitting Type Straight Fitting	Hex Size 24 mm	Material Steel	Material Construction 11SMnPb30 Steel	Series D2404 Series	Thread Size M22x1.5 x 1/2-14

Product Questions & Answers (1)

Question by: Shane R on Aug 2, 2025, 6:41 AM

Will this fitting work with regular hydraulic hoses, or is it for something special?

Answer by: Customer Support on Aug 3, 2025, 11:17 AM

This straight male connector is designed for standard hydraulic fluid lines requiring a reliable, leak-resistant threaded connection.
