BRENNAN 28L X 1 NPT STAINLESS

Description & Features

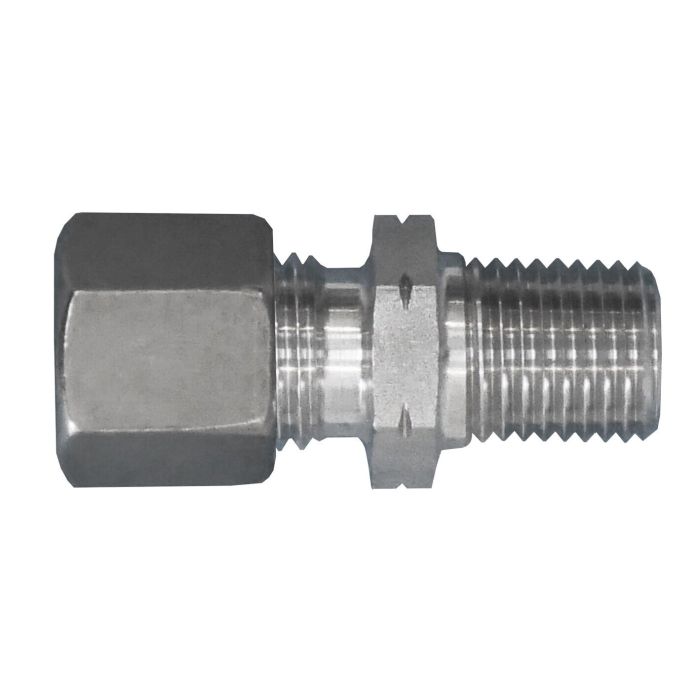

This Brennan straight stainless steel adapter features a 28mm light series DIN metric tube compression connection on one end and a 1-11-1/2 male NPT connection on the other.

The DIN 2353, ISO 8434-1 connection 1 is sized for a 28mm outer diameter tube. Connection 2 conforms to ANSI B1.20.1 standards, with a thread size of 1-11-1/2. Maximum dynamic pressure for this BRENNAN 28L X 1 NPT STAINLESS fitting is 160 bar.

SKU: D2404-L28-16-SS

Supplier Part Number (MPN): D2404-L28-16-SS

Specifications

Additional Information Light-Duty	Connection Size 1 L28	Connection Size 2 1 in	Connection Type Metric, MNPT	Connection Type 1 DIN Tube	Connection Type 2 Male NPT	Dimension Standards ANSI/ASME B1.20.1, DIN 2353, ISO 8434-1	Dimensions 2.283 in L	Fitting Type Straight Fitting	Hex Size 41 mm	Material Stainless Steel	Material Construction 316Ti Stainless Steel	Series D2404 Series	Thread Size M36x2 x 1-11-1/2

Product Questions & Answers (1)

Question by: Larry R on Apr 1, 2026, 5:40 PM

I need a straight adapter to go from a 28mm metric tube to a 1" NPT, will this do the trick?

Answer by: Customer Support on Apr 3, 2026, 6:22 AM

Yes, this straight stainless steel adapter features a 28mm light series DIN metric tube compression connection on one end and a 1-11-1/2 male NPT connection on the other, which is a 1" NPT.
