BRENNAN SS MBT X MP STRT

Description & Features

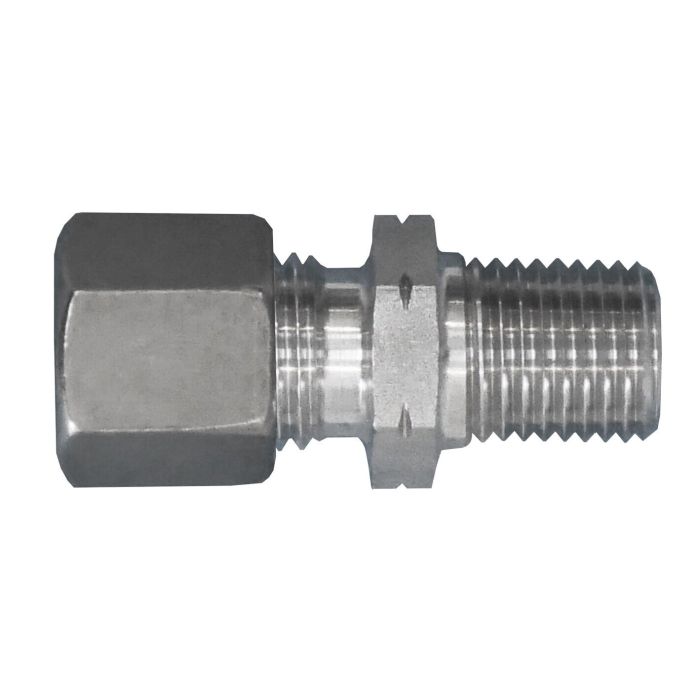

This BRENNAN SS MBT X MP STRT fitting is constructed from straight stainless steel. It features a DIN Metric Tube Compression connection with a 25mm tube OD and M36X2.0 thread, conforming to DIN 2353 and ISO 8434-1 standards.

On the other end, the fitting incorporates a 1/2-14 Male NPT connection adhering to ANSI B1.20.1 specifications. It has a maximum dynamic pressure of 400 bar and a C Hex 1 measurement of 46.0 mm.

SKU: D2404-S25-08-SS

Supplier Part Number (MPN): D2404-S25-08-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D2404-S25-08-SS	Product Weight 1.09 lbs

Product Questions & Answers (1)

Question by: Curt C on Jun 3, 2025, 10:07 AM

Will this fitting hold up okay in a hydraulic system running at 400 bar?

Answer by: Customer Support on Jun 5, 2025, 6:10 AM

This fitting is rated for a maximum dynamic pressure of 400 bar, so it should be suitable for your system, provided all other components are similarly rated and compatible.
