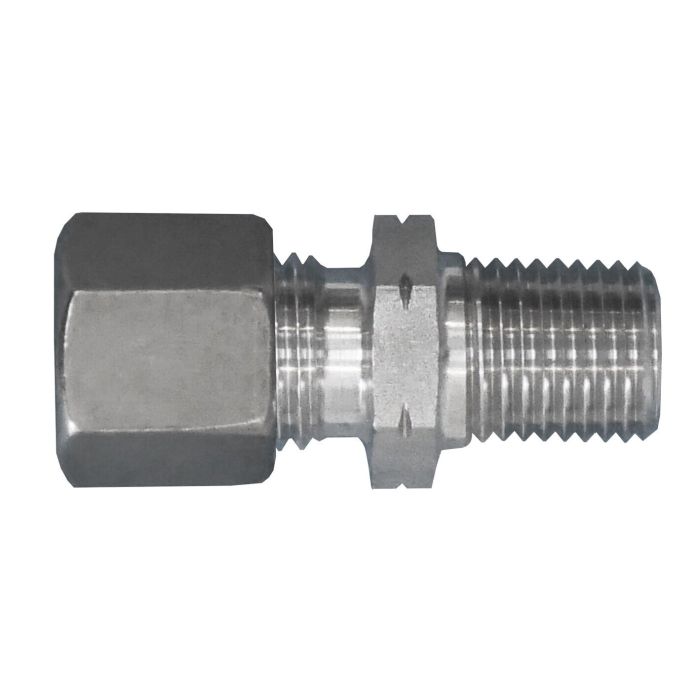

BRENNAN SS MBT X MP STR

Constructed from straight stainless steel, the BRENNAN SS MBT X MP STR is designed for robust industrial applications requiring reliable connections. This fitting features a DIN metric tube compression connection on one end, compatible with heavy 25mm tube OD, adhering to DIN 2353 and ISO 8434-1 standards. On the other end, it offers a male NPT connection with a thread size of 3/4-14, conforming to ANSI B1.20.1 specifications, ensuring versatile integration with various systems.

With a maximum dynamic pressure capacity of 400 bar, this fitting is well-suited for high-pressure environments. Key dimensions include an overall length of 65.0 mm and a centerline length of 40.0 mm, with a hex size of 46.0 mm. The precision engineering of this component ensures secure and efficient performance in demanding settings.

SKU: D2404-S25-12-SS

Supplier Part Number (MPN): D2404-S25-12-SS
