L06MBT-L06MBT 90 DEG

Description & Features

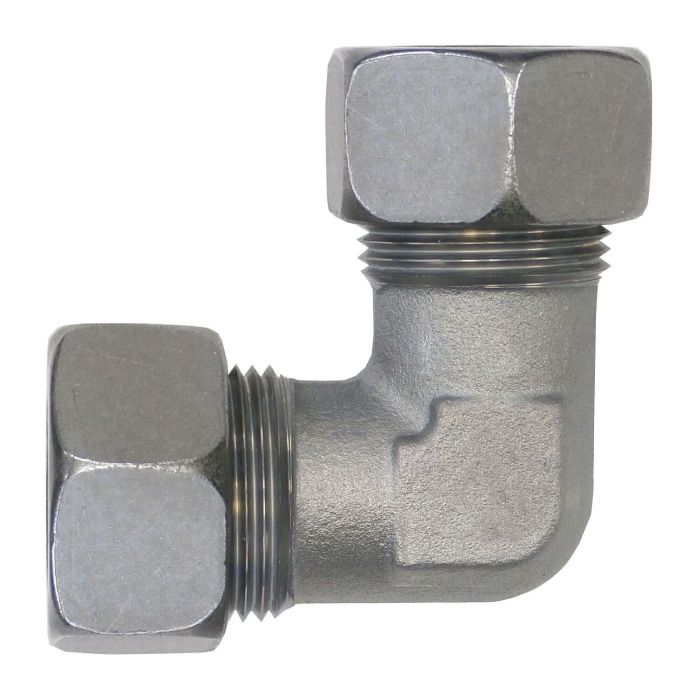

A 90-degree elbow fitting designed for metric tube compression connections, the L06MBT-L06MBT 90 Deg is manufactured from steel forging and built to handle dynamic pressures up to 500 bar. Both ends conform to DIN 2353 and ISO 8434-1 standards, with M12x1.5 threads sized for 6mm OD light-series tubing, making it well suited for compact hydraulic circuits where a right-angle directional change is required.

Part of Brennan Industries' D2500 series, this fitting features matching 14mm hex sizes on both connections, with an overall length of 27mm and a centerline length of 12mm. The consistent thread and tube sizing across both ports simplifies installation in symmetrical or mirrored line configurations. California residents should note this product carries a Prop 65 warning.

SKU: D2500-L06-L06

Supplier Part Number (MPN): D2500-L06-L06

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D2500-L06-L06	Product Weight 0.11 lbs

Product Questions & Answers (1)

Question by: Connie C on Jul 21, 2025, 1:49 PM

Reckon this elbow fitting would hold up alright in a tight spot, size-wise?

Answer by: Customer Support on Jul 23, 2025, 7:08 AM

This 90-degree elbow is built with a centerline length of 12mm and an overall length of 27mm, so it should indeed fit well in compact hydraulic setups where space is at a premium.
