L18MBT-L18MBT 90 DEG

Description & Features

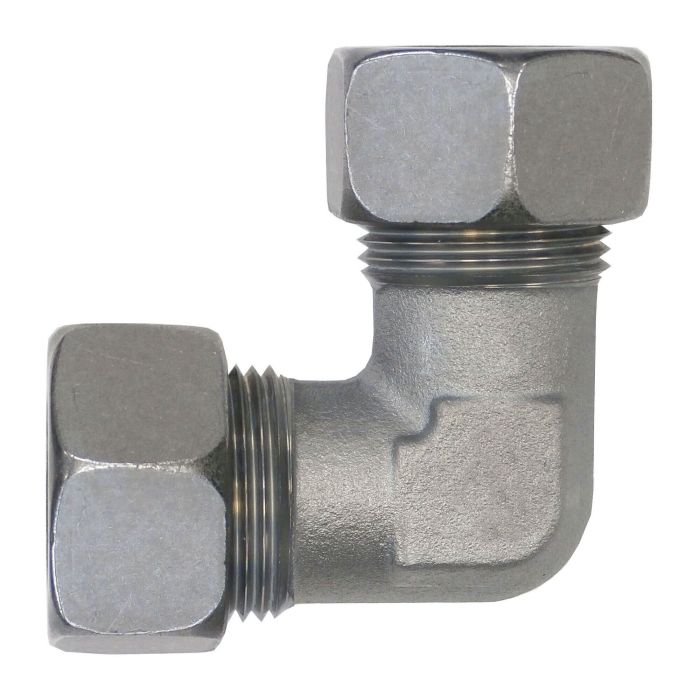

Manufactured from steel forging, the L18MBT-L18MBT 90 Deg is a 90-degree elbow union fitting designed for DIN metric tube compression connections on both ports. Each end accepts 18mm OD light-series tubing with an M26x1.5 thread, conforming to DIN 2353 and ISO 8434-1 standards. The 32mm hex on each side provides consistent wrench engagement during assembly.

Rated to 400 bar maximum dynamic pressure, this fitting is well suited to demanding hydraulic circuits where a right-angle tube routing transition is required. Part of Brennan Industries' D2500 series, it carries an overall length of 40.5mm with a 31mm secondary length dimension, keeping the envelope compact in space-constrained installations. California Proposition 65 warning applies.

SKU: D2500-L18-L18

Supplier Part Number (MPN): D2500-L18-L18

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D2500-L18-L18	Product Weight 0.58 lbs

Product Questions & Answers (1)

Question by: Phil S on Nov 30, 2025, 5:40 PM

What kind of pressure can this fitting handle on a hydraulic system?

Answer by: Customer Support on Dec 2, 2025, 6:45 AM

This 90-degree elbow union fitting is rated to a maximum dynamic pressure of 400 bar, making it suitable for demanding hydraulic circuits.
