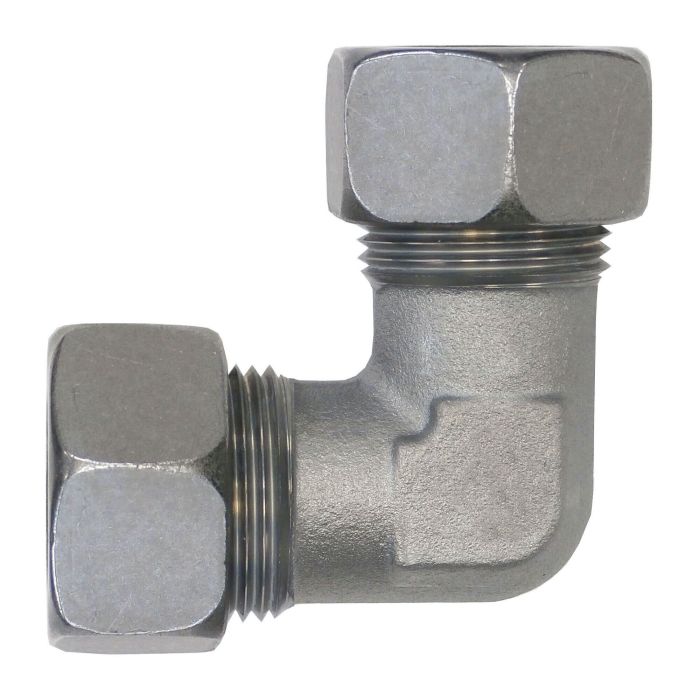

L22MBT-L22MBT 90 DEG

Crafted from durable steel forging, the L22MBT-L22MBT 90 DEG fitting is engineered for high-performance hydraulic applications. This fitting features DIN Metric tube compression connections on both ends, adhering to DIN 2353 and ISO 8434-1 standards. It is designed for a light 22mm tube outer diameter and accommodates an M30X2.0 thread size, ensuring a reliable and secure connection. With a maximum dynamic pressure capacity of 250 bar, this fitting is suitable for demanding industrial environments.

The fitting's compact dimensions include a centerline length of 27.5 mm and an overall length of 45.5 mm, making it ideal for installations where space is limited. The hex size of 36.0 mm across both connections facilitates easy installation and maintenance. Trust Brennan Industries for quality and precision in hydraulic components, as exemplified by this series D2500 fitting.

SKU: D2500-L22-L22

Supplier Part Number (MPN): D2500-L22-L22
