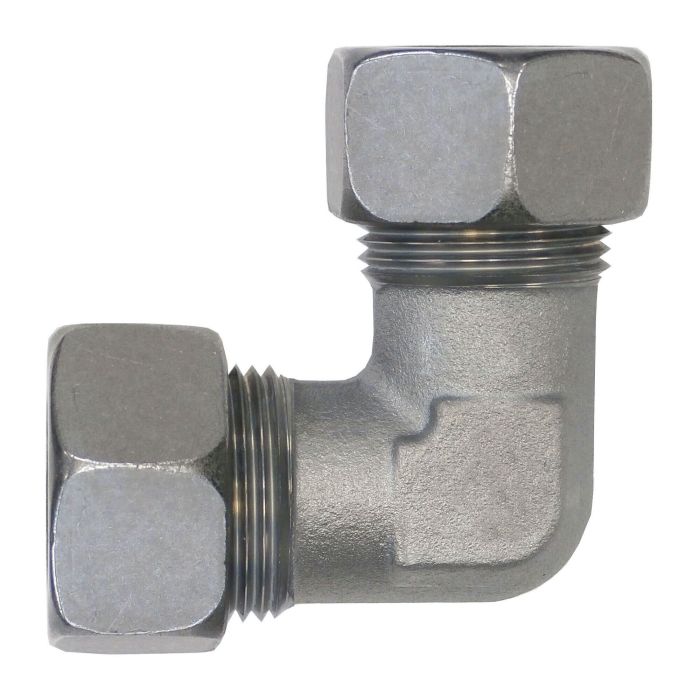

BRENNAN S16MBT-S16MBT 90° Stnls

Description & Features

The Brennan 90° stainless steel fitting features DIN metric tube compression connections on both ends. This D2500 series fitting is constructed from stainless steel forging for durability and corrosion resistance.

With a maximum dynamic pressure of 630 bar, each connection is designed to accommodate a 16mm heavy tube OD with M24X1.5 threads, adhering to DIN 2353 and ISO 8434-1 standards. The fitting has a centerline length of 24.5 mm, an overall length of 43.0 mm, and an overall length L2 of 33.0 mm. Both connection ends feature a 30.0 mm hex size.

SKU: D2500-S16-S16-SS

Supplier Part Number (MPN): D2500-S16-S16-SS

Specifications

Additional Information Heavy-Duty	Connection Size 1 S16	Connection Size 2 S16	Connection Type Metric	Connection Type 1 DIN Tube	Connection Type 2 DIN Tube	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 43 mm L	Fitting Type 90 deg Elbow	Hex Size 24 mm	Material Stainless Steel	Material Construction 316Ti Stainless Steel	Series D2500 Series	Thread Size M24x1.5

Product Questions & Answers (1)

Question by: Larry T on Aug 26, 2025, 8:09 AM

Just wanna be sure, this fitting will work with a 16mm OD tube?

Answer by: Customer Support on Aug 27, 2025, 11:50 AM

This 90° fitting is designed for use with a 16mm heavy tube OD, as it uses DIN metric tube compression connections on both ends. It's made to the DIN 2353 and ISO 8434-1 standards.
