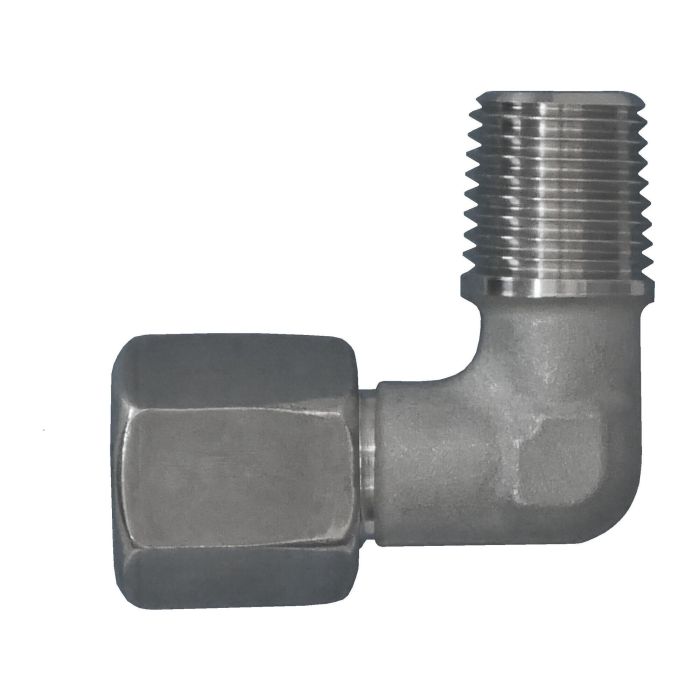

main product photo

BRENNAN D8250-L08-04-NBR-SS

Ask A Question

Description & Features

A 90-degree DIN metric tube compression fitting with a male NPT end, the Brennan D8250-L08-04-NBR-SS is forged from stainless steel and suited for hydraulic systems operating at pressures up to 315 bar. The angled configuration directs an 8mm OD light tube connection into a 1/4-18 NPT male thread, making it practical where inline routing is restricted or a direction change is required.

Connection 1 conforms to DIN 2353 and ISO 8434-1 with an M14x1.5 thread, while Connection 2 meets Ansi B1.20.1. Overall length runs 29mm on the tube side, with a 21mm measurement on the NPT end and a 17mm hex. The stainless steel forging construction supports use in corrosive or high-cleanliness environments where carbon steel fittings are not appropriate. This fitting carries a California Proposition 65 warning.

SKU: D2501-L08-04-SS

Supplier Part Number (MPN): D2501-L08-04-SS

Specifications

Additional Information
Light-Duty
Connection Size 1
8 mm
Connection Size 2
1/4 in
Connection Type
Metric, MNPT
Connection Type 1
DIN Tube
Connection Type 2
Male NPT
Dimension Standards
ANSI/ASME B1.20.1, DIN 2353, ISO 8434-1
Dimensions
29 mm L
Fitting Type
90 deg Elbow
Hex Size
12 mm
Material
Stainless Steel
Material Construction
316Ti Stainless Steel
Series
D2501 Series
Thread Size
1/4-18, M14x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Neal P on Oct 30, 2025, 8:12 AM
Reckon this fitting would hold up okay in a hydraulic setup that sees some pretty high pressure?
Answer by: Customer Support on Oct 31, 2025, 8:20 PM
This fitting is rated to handle dynamic pressures up to 315 bar, so it should be suitable for high-pressure hydraulic systems within that limit.
