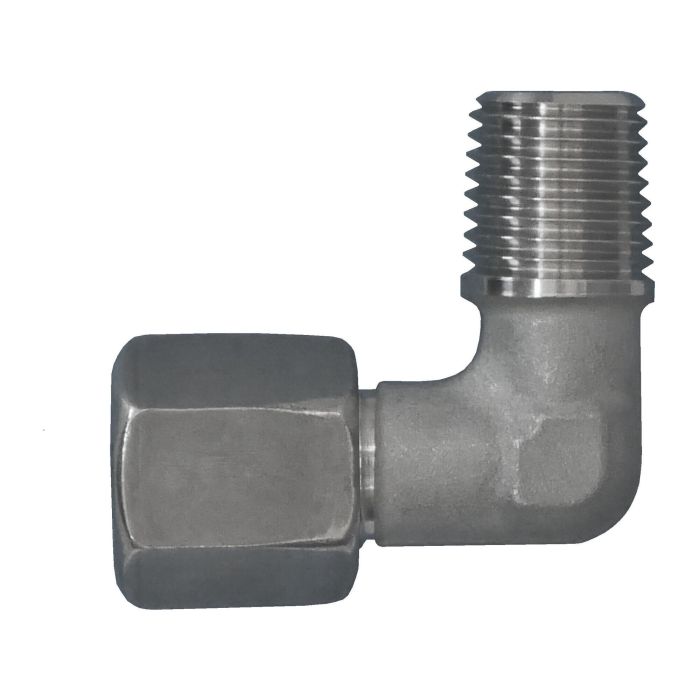

BRENNAN MBT X MP SS ELBOW

Description & Features

This stainless steel elbow features a DIN Metric Tube Compression connection on one end and a Male NPT connection on the other. The Brennan MBT X MP SS ELBOW is manufactured from stainless steel forging and suitable for applications with dynamic pressures up to 630 bar.

The DIN Metric connection conforms to DIN 2353 and ISO 8434-1 standards with a heavy 12mm tube OD and M20X1.5 thread. The Male NPT connection conforms to ANSI B1.20.1 standards with a 1/4-18 thread size.

SKU: D2501-S12-04-SS

Supplier Part Number (MPN): D2501-S12-04-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D2501-S12-04-SS	Product Weight 0.26 lbs

Product Questions & Answers (1)

Question by: Rusty S on Dec 15, 2025, 7:50 PM

What size tubing does this compression fitting work with? Just want to make sure it'll fit my setup.

Answer by: Customer Support on Dec 17, 2025, 6:11 AM

This elbow is designed for a heavy 12mm outer diameter tube according to the DIN Metric standard. It's also got an M20X1.5 thread on that side.
