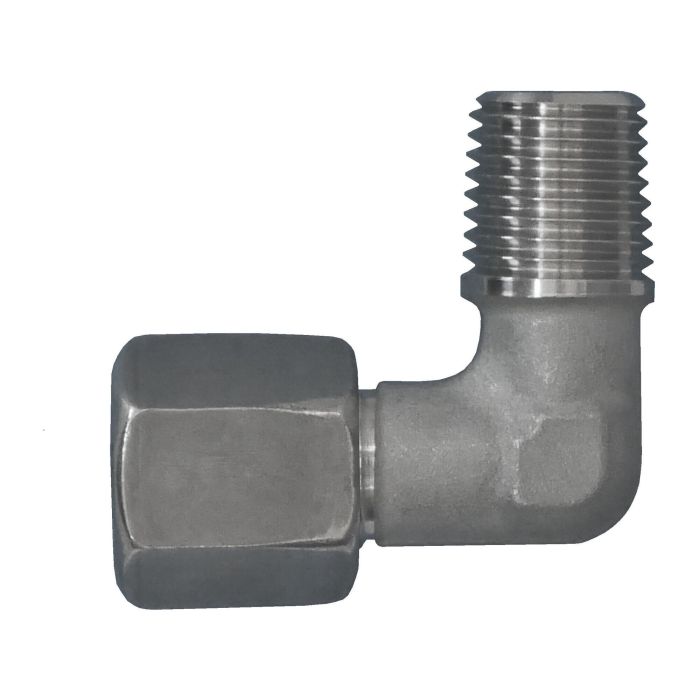

BRENNAN SS MBT X MP ELBOW

Description & Features

Designed for high-pressure hydraulic tube routing, the Brennan SS MBT x MP Elbow provides a 90-degree transition between a DIN metric tube compression fitting and a male NPT threaded connection. The compression end accepts heavy 20mm OD tube with an M30x2.0 thread conforming to DIN 2353 and ISO 8434-1, while the male NPT end is sized at 3/4-14 per ANSI B1.20.1, making it well suited for connecting metric tube runs to NPT-ported components.

Constructed from a stainless steel forging, this elbow is built to handle a maximum dynamic pressure of 400 bar. The stainless material makes it appropriate for use in corrosive or washdown-intensive industrial environments. With an overall length of 49mm and a 36mm hex, the fitting is compact and tool-accessible. Part of Brennan Industries' D2501 series, it carries a California Proposition 65 warning.

SKU: D2501-S20-12-SS

Supplier Part Number (MPN): D2501-S20-12-SS

Specifications

Additional Information Heavy-Duty	Connection Size 1 20 mm	Connection Size 2 3/4 in	Connection Type Metric, MNPT	Connection Type 1 DIN Tube	Connection Type 2 Male NPT	Dimension Standards ANSI/ASME B1.20.1, DIN 2353, ISO 8434-1	Dimensions 49 mm L	Fitting Type 90 deg Elbow	Hex Size 27 mm	Material Stainless Steel	Material Construction 316Ti Stainless Steel	Series D2501 Series	Thread Size M30x2 x 3/4-14

Product Questions & Answers (1)

Question by: Peggy H on Aug 24, 2025, 6:18 PM

Reckon this'll hold up alright in a place where things get hosed down pretty regular?

Answer by: Customer Support on Aug 26, 2025, 6:27 AM

Given it's made from stainless steel, this elbow fitting is well-suited for use in environments that require frequent washdowns or where there are corrosive elements present.
