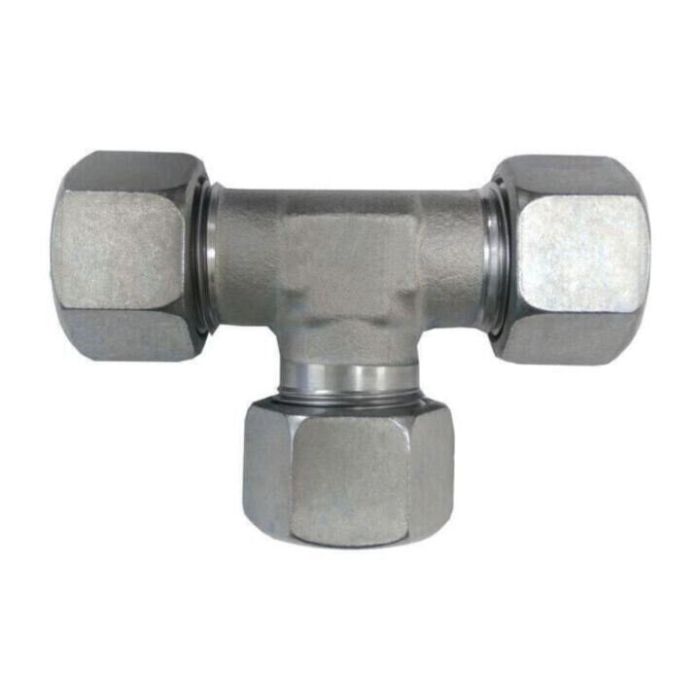

L08MBT-L08MBT-L08MBT TEE

Designed for equal-branch tube line splitting in hydraulic systems, the L08MBT-L08MBT-L08MBT Tee provides three identical DIN metric tube compression connections conforming to DIN 2353 and ISO 8434-1. Each port accepts 8 mm OD light-series tubing with an M14x1.5 thread, making this a uniform equal tee configuration suited to compact manifold and distribution arrangements.

Manufactured from steel forging, the fitting is rated to 500 bar dynamic pressure. Hex dimensions across all three connections measure 17.0 mm, with an overall body length of 29.0 mm and a centerline length of 14.0 mm. The forged steel construction provides the structural integrity expected in demanding hydraulic circuit applications. California residents should note this product carries a Prop 65 warning.

SKU: D2603-L08-L08-L08

Supplier Part Number (MPN): D2603-L08-L08-L08
