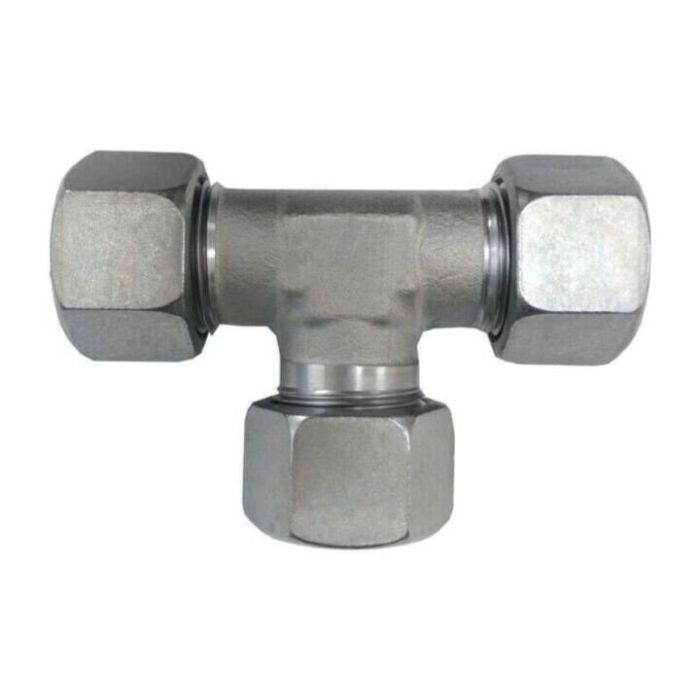

L22MBT-L22MBT-L22MBT Tee Stnls

Constructed from stainless steel forging, the L22MBT-L22MBT-L22MBT Tee Stnls is an equal tee fitting with three DIN Metric tube compression connections, each conforming to DIN 2353 and ISO 8434-1. All three ports share an M30x2.0 thread size and are rated for light 22mm OD tube, making this a true equal-configuration tee across all connections.

Rated to 250 bar maximum dynamic pressure, this fitting is suited for demanding hydraulic tube assemblies where corrosion resistance is a priority. The 36mm hex size is consistent across all three connections, and overall body dimensions measure 45.5mm in length with a centerline length of 27.5mm. Stainless steel construction makes it appropriate for applications involving aggressive media or environments where carbon steel fittings would be unsuitable. California residents should note the applicable Prop 65 warning associated with this product.

SKU: D2603-L22-L22-L22-SS

Supplier Part Number (MPN): D2603-L22-L22-L22-SS
