L28MBT-L28MBT-L28MBT TEE

Description & Features

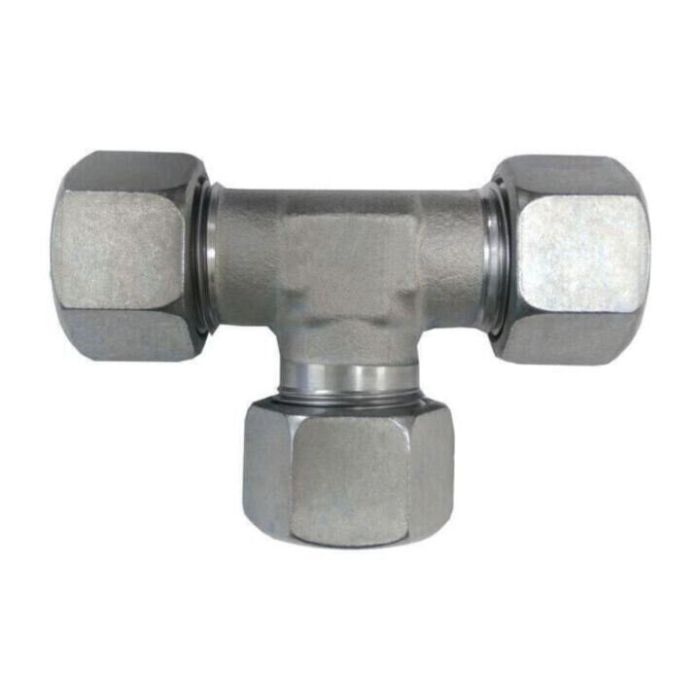

Manufactured from steel forging, the L28MBT-L28MBT-L28MBT Tee is a three-way equal tee fitting designed for DIN metric tube compression connections on all three ports. Each port accepts 28mm OD light tube with an M36x2.0 thread, conforming to DIN 2353 and ISO 8434-1 standards.

Rated to 250 bar dynamic pressure, this fitting suits demanding hydraulic circuits where consistent performance across all connection points is required. The equal tee configuration, with identical hex sizes of 41mm across all ports, simplifies installation and torque application. Centerline length measures 30.5mm, with an overall length of 49mm, keeping the assembly compact within tight routing constraints. Part of the Brennan Industries D2603-Equal series.

California Proposition 65 warning applies to this product.

SKU: D2603-L28-L28-L28

Supplier Part Number (MPN): D2603-L28-L28-L28

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D2603-L28-L28-L28	Product Weight 1.49 lbs

Product Questions & Answers (1)

Question by: Wes H on Dec 14, 2025, 1:51 PM

Reckon this tee fitting will hold up in a hydraulic system running around 250 bar?

Answer by: Customer Support on Dec 16, 2025, 6:45 AM

Yes, this tee fitting is rated for dynamic pressures up to 250 bar, so it should be suitable for your system.
