S25MBT-S25MBT-S25MBT TEE

Description & Features

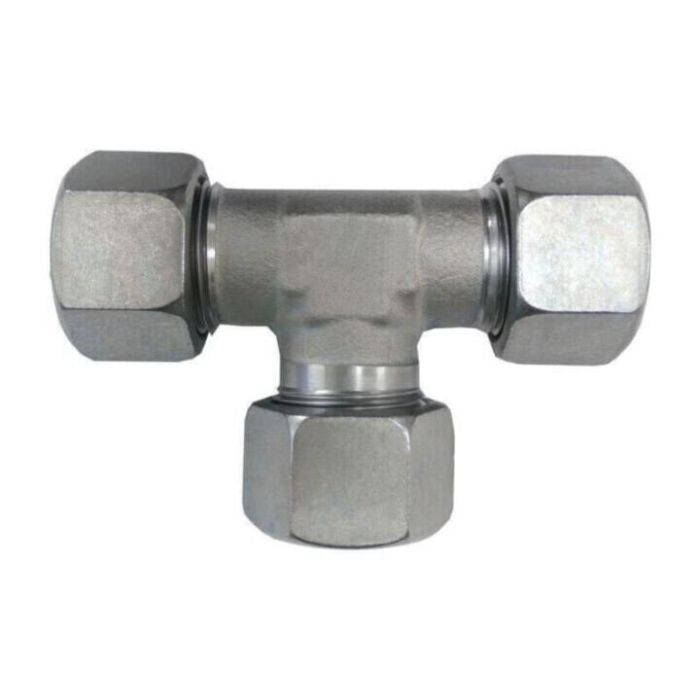

This steel forging tee, with a product name of S25MBT-S25MBT-S25MBT TEE, features three DIN metric tube compression connections. Each connection conforms to DIN 2353 and ISO 8434-1 standards, with M36X2.0 threads and accommodates a 25mm heavy tube OD.

The maximum dynamic pressure is rated to 420 bar. The hex sizes for each connection are 46.0 mm, with centerline lengths of 30.0 mm. Overall lengths measure 55.0 mm and 42.0 mm respectively.

SKU: D2603-S25-S25-S25

Supplier Part Number (MPN): D2603-S25-S25-S25

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D2603-S25-S25-S25	Product Weight 2.60 lbs

Product Questions & Answers (1)

Question by: Marvin E on Jan 11, 2026, 10:37 AM

Reckon this tee fitting will hold up okay in an hydraulic setup on a log splitter?

Answer by: Customer Support on Jan 12, 2026, 8:41 PM

Rated to a maximum dynamic pressure of 420 bar, this steel forging tee should do the job.
