S30MBT-S30MBT-S30MBT TEE

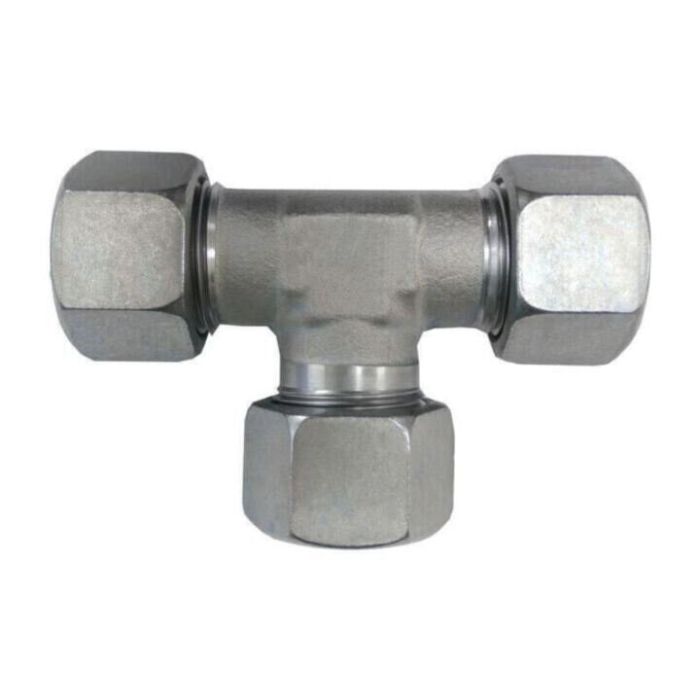

Constructed from steel forging, this equal tee fitting provides three identical DIN Metric Tube Compression connections conforming to DIN 2353 and ISO 8434-1. Each port accepts 30mm OD heavy-series tubing with an M42x2.0 thread, making it well suited for symmetrical branch configurations in high-pressure hydraulic lines.

The S30MBT-S30MBT-S30MBT Tee is rated to a maximum dynamic pressure of 420 bar and features a 50mm hex across all three connections. With an overall length of 63mm and a centerline length of 35.5mm, the fitting is compact relative to its tube size. California residents should note this product carries a Prop 65 warning.

SKU: D2603-S30-S30-S30

Supplier Part Number (MPN): D2603-S30-S30-S30
