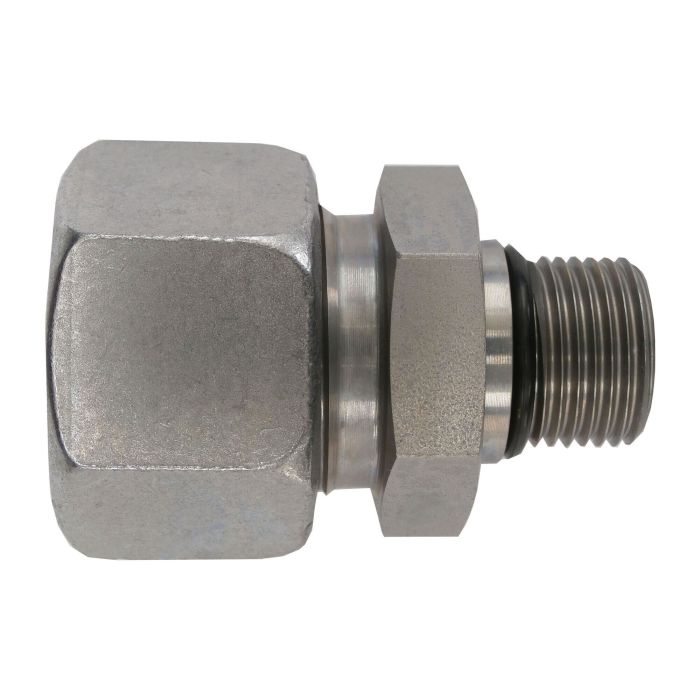

L06MBT-06MORB STRAIGHT

Designed for straight-run hydraulic connections, the L06MBT-06MORB Straight fitting from Brennan Industries bridges a DIN metric tube compression end to a male SAE O-ring boss port in a single compact body. The compression end conforms to DIN 2353 and ISO 8434-1 standards, accepting 6mm OD light-series tube on an M12x1.5 thread. The opposing end follows SAE J1926 and ISO 11926, with a 9/16-18 UNF thread and an Nbr O-ring seal for leak-resistant face sealing.

Constructed from straight steel, the fitting carries a rated dynamic pressure of 400 bar, making it suitable for demanding hydraulic circuits. With an overall length of 35mm, it suits installations where space is limited but full-pressure performance is required. The Nbr O-ring material provides reliable compatibility with standard hydraulic fluids across a broad service range. California residents should note the applicable Proposition 65 warning associated with this product.

SKU: D6400-L06-06-O

Supplier Part Number (MPN): D6400-L06-06-O
