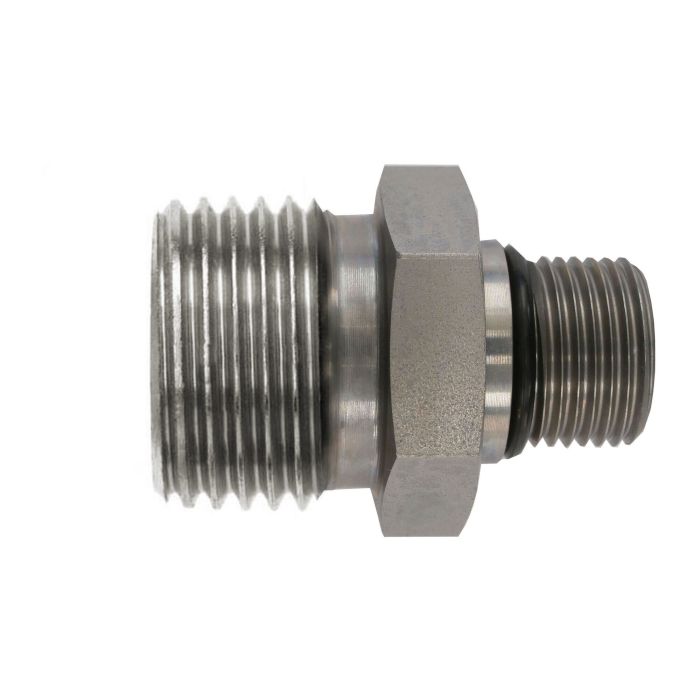

MDIN10L x -6ORB

Designed for robust industrial applications, the MDIN10L x -6ORB hydraulic fitting offers dependable performance with its precise engineering. This straight steel fitting features a male metric 24-degree DIN seat on one end, compatible with DIN 2353 and ISO 8434-1 standards, and a male SAE O-ring boss on the other, conforming to SAE J1926 and ISO 11926 standards. Its versatility is enhanced by accommodating a light 10mm tube OD, ensuring a secure connection.

Crafted from high-quality straight steel, this fitting ensures durability and reliability under high-pressure conditions, with a maximum dynamic pressure rating of 400 bar. The NBR O-ring seal material further guarantees effective sealing, minimizing the risk of leaks. With an overall length of 28mm, this fitting is designed to meet the rigorous demands of industrial environments. The MDIN10L x -6ORB is a part of the D6400-O-X series by Brennan Industries, a trusted name in hydraulic components.

SKU: D6400-L10-06-O-X

Supplier Part Number (MPN): D6400-L10-06-O-X
