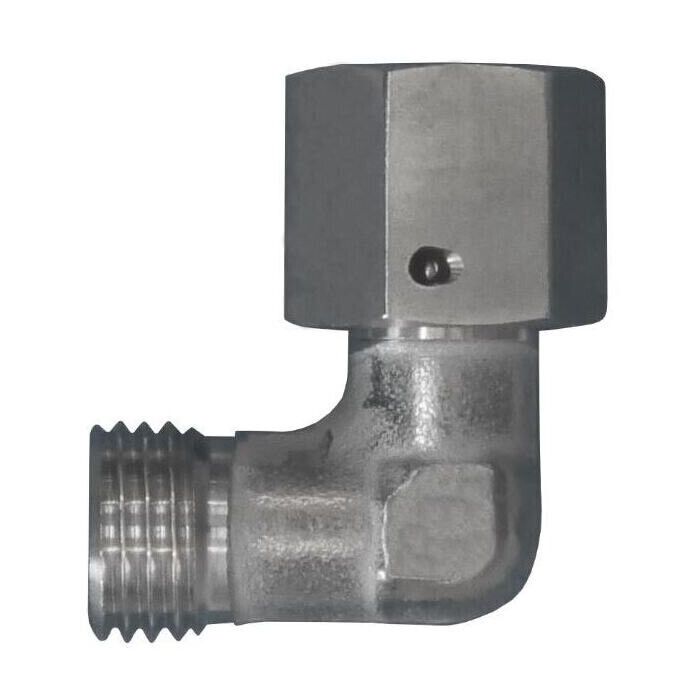

MALE M16X1.5T10 TO FEMALE M16X1.5T10 90D

Ask A Question

Description & Features

This steel forging is a male M16X1.5T10 to female M16X1.5T10 90-degree fitting. It is manufactured to DIN 2353 and ISO 8434-1 standards. The Male M16X1.5T10 to Female M16X1.5T10 90D is designed for light 10mm OD tubing.

Featuring NBR O-ring seal material, this fitting is part of the D6500-X series and has a maximum dynamic pressure of 500 bar.

SKU: D6500-L10-L10-X

Supplier Part Number (MPN): D6500-L10-L10-X

Specifications

Brand
BRENNAN
Additional Information
Light-Duty, Without Nut and Sleeve
Connection Size 2
10 mm
Connection Type
Female Metric Swivel, Male Metric
Connection Type 1
Male DIN Tube
Connection Type 2
Female Metric Swivel
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
22 mm L
Finish
Nickel/Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
14 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
D6500-X Series
Thread Size
M16x1.5

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Maximum Operating Pressure Price Action
90DEG MALE M18x1.5 T12 X FEM M18x1.5 T12

D6500-L12-L12-X

L12

12 mm

M18x1.5

17 mm

Product Questions & Answers (1)

Question by: Ray H on Jul 16, 2025, 8:25 PM
Can this fitting handle hydraulic pressures in a heavy-duty application, or is it more for lighter stuff?
Answer by: Customer Support on Jul 17, 2025, 8:38 PM
Constraint-first: Though this fitting is robust due to its steel forging construction, it's specifically designed for light-duty applications with 10mm OD tubing and a maximum dynamic pressure of 500 bar.
