L18MBT-L18FMS 90 DEG

Description & Features

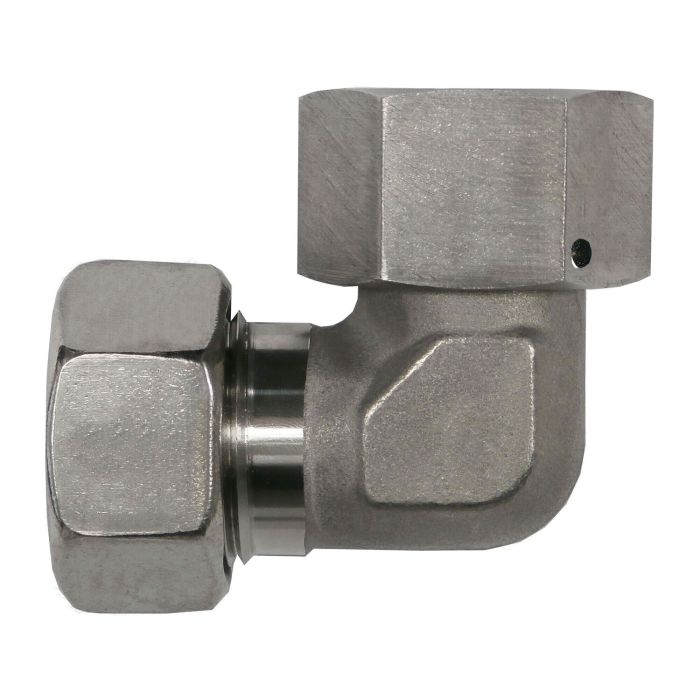

This 90-degree fitting, designated L18MBT-L18FMS 90 DEG, is constructed from steel forging and designed for a maximum dynamic pressure of 400 bar.

It features a DIN Metric Tube Compression connection (B1) with an 18mm tube size and M26X1.5 thread, conforming to DIN 2353 and ISO 8434-1 specifications. The Female Metric Swivel DIN 24DEG connection (B2) also features an 18mm tube size and M26X1.5 thread, and conforms to DIN 2353 and ISO 8434-1 specifications. The O-ring seal is made from NBR material.

SKU: D6500-L18-L18

Supplier Part Number (MPN): D6500-L18-L18

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D6500-L18-L18	Product Weight 0.56 lbs

Product Questions & Answers (1)

Question by: Kurt F on Oct 12, 2025, 7:48 AM

Reckon this'll hold up alright at its max pressure rating?

Answer by: Customer Support on Oct 13, 2025, 8:36 AM

This 90-degree fitting is built from steel forging and rated for dynamic pressures up to 400 bar.
