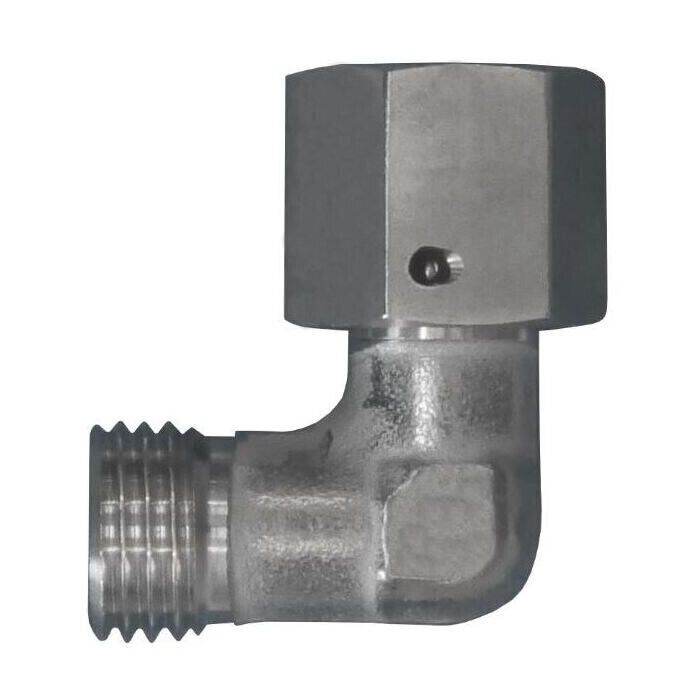

S12MBT-S12FMS 90° W/O TUBE NUT & SLEEVE

Description & Features

This 90° fitting, S12MBT-S12FMS 90° W/O TUBE NUT & SLEEVE, features a steel forging raw material type for durability in demanding hydraulic applications. Designed to meet DIN 2353 and ISO 8434-1 standards for reliable performance, it incorporates NBR O-ring seal material to ensure a secure, leak-free connection.

The fitting includes a male metric 24-degree DIN seat on one end and a female metric swivel DIN 24-degree connection on the other, both with M20X1.5 thread size to fit HEAVY 12MM tube OD. With a maximum dynamic pressure rating of 630 bar, this fitting is suitable for high-pressure hydraulic systems.

SKU: D6500-S12-S12-X

Supplier Part Number (MPN): D6500-S12-S12-X

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D6500-S12-S12-X	Product Weight 0.25 lbs

Product Questions & Answers (1)

Question by: Terry P on Mar 11, 2026, 12:13 PM

What size tubing does this thing fit?

Answer by: Customer Support on Mar 12, 2026, 5:26 PM

This 90-degree fitting is made to work with HEAVY 12MM outside diameter tubing.
