S16MBT-S16FMS 90 DEG

Description & Features

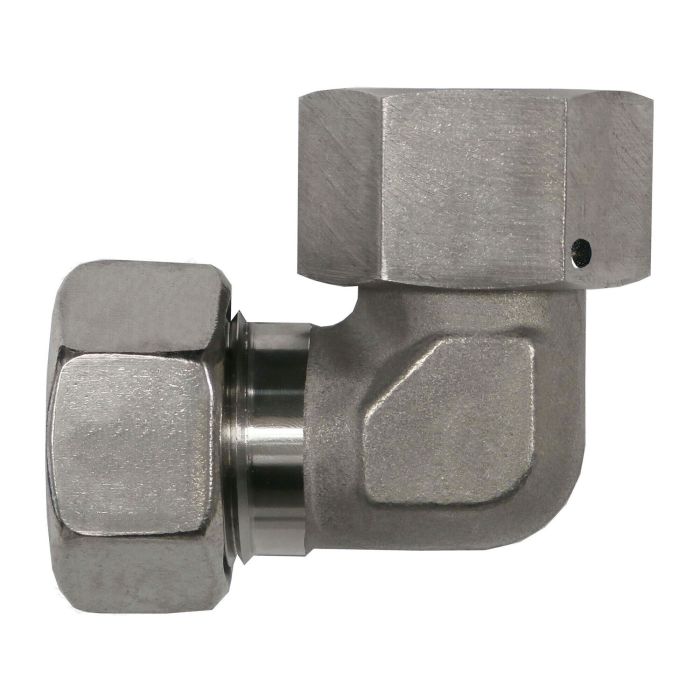

This steel forging, 90-degree fitting features DIN Metric Tube Compression connections on both ends. The S16MBT-S16FMS 90 DEG fitting is manufactured with a Connection 1 and Connection 2 specification of DIN 2353, ISO 8434-1.

Both connection ends accommodate a heavy 16mm tube OD with M24X1.5 thread size. The maximum dynamic pressure for this fitting is 630 bar.

SKU: D6500-S16-S16

Supplier Part Number (MPN): D6500-S16-S16

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D6500-S16-S16	Product Weight 0.60 lbs

Product Questions & Answers (1)

Question by: Peggy C on Nov 2, 2025, 12:37 PM

Is that pressure rating a hard limit?

Answer by: Customer Support on Nov 4, 2025, 8:57 AM

Yes, the maximum dynamic pressure for this fitting is 630 bar, as exceeding this could compromise the integrity of the connection.
