S20MBT-S20FMS 90 DEG

Description & Features

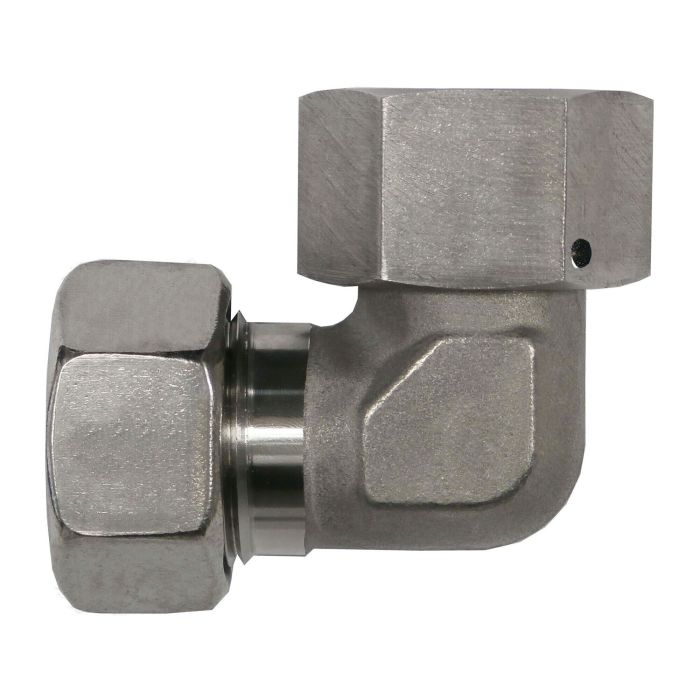

This forged steel 90-degree fitting, S20MBT-S20FMS 90 DEG, features DIN metric tube compression connections on both ends. Suitable for heavy 20mm OD tubing, it conforms to DIN 2353 and ISO 8434-1 standards.

The fitting offers a maximum dynamic pressure of 420 bar and includes NBR O-ring seals for reliable performance. Centerline lengths measure 26.5mm and 44.5mm, with overall lengths of 37.0mm and 49.0mm. Each connection has a 36.0mm hex size.

SKU: D6500-S20-S20

Supplier Part Number (MPN): D6500-S20-S20

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D6500-S20-S20	Product Weight 0.94 lbs

Product Questions & Answers (1)

Question by: Bobby R on Oct 18, 2025, 11:55 AM

I need a 90 degree fitting for some heavy duty 20mm OD tubing. Is this the right one?

Answer by: Customer Support on Oct 19, 2025, 9:16 PM

This 90-degree fitting, the S20MBT-S20FMS, is indeed designed for heavy 20mm OD tubing. It's made from forged steel and conforms to DIN 2353 and ISO 8434-1 standards.
