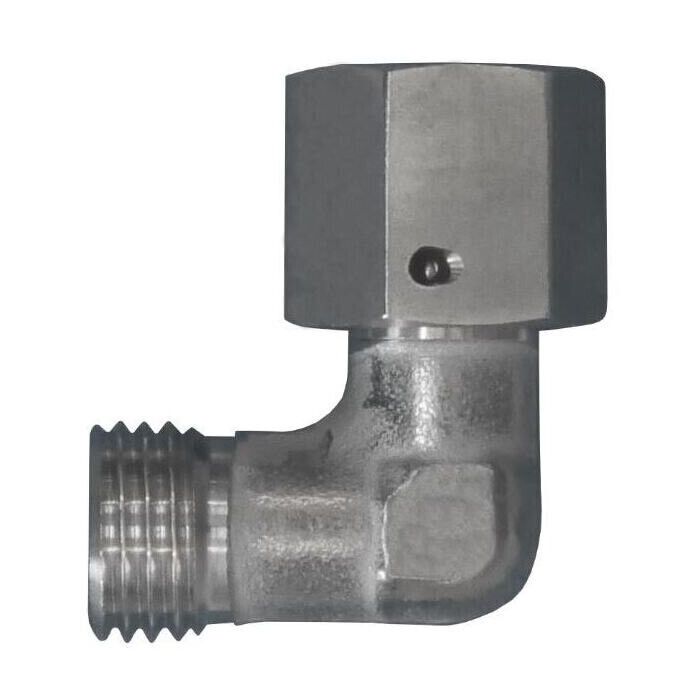

S25MBT-S25FMS 90 W/O TUBE NUT & SLEEVE

Description & Features

This steel forging is a S25MBT-S25FMS 90 W/O TUBE NUT & SLEEVE, featuring male metric 24-degree DIN seat connections on one side and female metric swivel DIN 24-degree connections on the other. Both connections conform to DIN 2353 and ISO 8434-1 standards, with M36X2.0 threads designed for heavy 25mm OD tubing.

With a maximum dynamic pressure rating of 420 bar, this fitting includes NBR O-ring seals and is part of the D6500-X series. The Brennan fitting has a 46.0 mm hex size and overall lengths of 42.0 mm and 30.0 mm.

SKU: D6500-S25-S25-X

Supplier Part Number (MPN): D6500-S25-S25-X

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D6500-S25-S25-X	Product Weight 1.24 lbs

Product Questions & Answers (1)

Question by: Billy E on Mar 20, 2026, 11:19 AM

This fitting looks like it'll handle some pressure. What's the max it's rated for?

Answer by: Customer Support on Mar 21, 2026, 9:33 PM

It's designed to handle dynamic pressures up to 420 bar, making it suitable for heavy-duty hydraulic applications.
