S30MBT-S30FMS 90 DEG

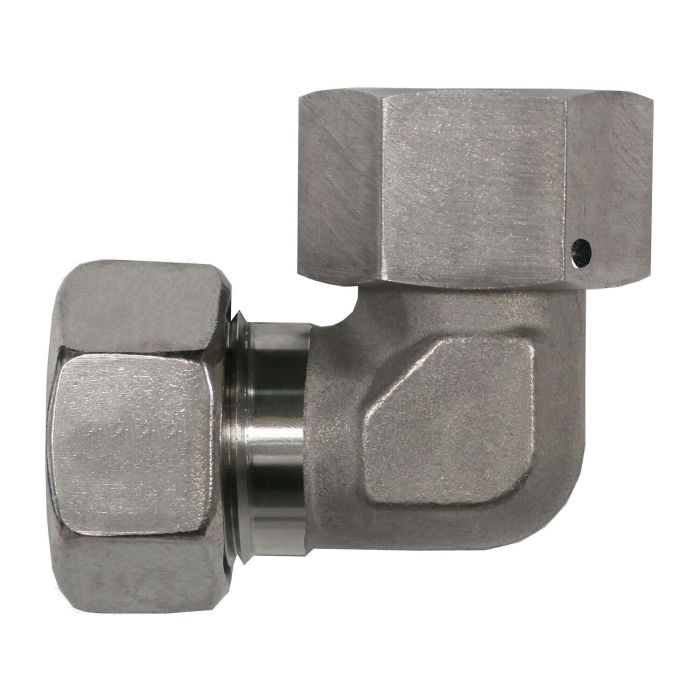

Designed for 30mm heavy-wall tube in high-pressure hydraulic circuits, the S30MBT-S30FMS 90 Deg is a 90-degree elbow fitting that combines a DIN metric tube compression end with a female metric swivel connection on the opposing port. Both ends conform to DIN 2353 and ISO 8434-1, threading at M42×2.0, making this fitting compatible with standard DIN metric tube assemblies.

Forged from steel and sealed with an NBR O-ring, it is rated to 420 bar dynamic pressure. The 50mm hex flats on both ends allow for straightforward torquing during installation. With an overall body length of 63mm and centerline dimensions of 35.5mm and 55.5mm across the two axes, the fitting is sized for compact routing where a right-angle change of direction is required. The Brennan D6500 series construction reflects consistent dimensional and material standards across the range.

SKU: D6500-S30-S30

Supplier Part Number (MPN): D6500-S30-S30
