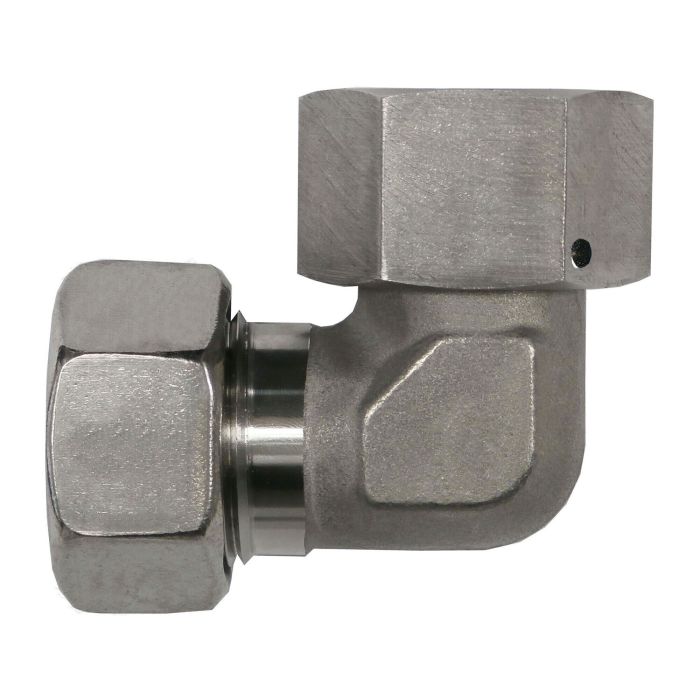

S38MBT-S38FMS 90 DEG

Description & Features

The S38MBT-S38FMS 90 DEG fitting is engineered for robust industrial applications, providing reliable performance with its DIN Metric Tube Compression and Female Metric Swivel DIN 24° connections. Suitable for heavy-duty use, it accommodates a 38mm tube outer diameter, ensuring secure and efficient flow in hydraulic systems.

Constructed from high-quality steel forging, this fitting is designed to withstand demanding conditions, supporting a maximum dynamic pressure of up to 420 bar. The dual M52x2.0 threading on both connection points ensures compatibility and ease of installation, while the NBR O-ring seal material enhances leak resistance. Compliance with DIN 2353 and ISO 8434-1 standards guarantees adherence to international specifications, making it a versatile choice for various industrial setups.

SKU: D6500-S38-S38

Supplier Part Number (MPN): D6500-S38-S38

Specifications

Brand BRENNAN	Additional Information Heavy-Duty	Connection Size 1 38S	Connection Size 2 38S	Connection Type Female Metric Swivel, Metric	Connection Type 1 DIN Tube	Connection Type 2 Female Metric Swivel	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 72.5 mm L	Finish Nickel/Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction 11SMnPb30 Steel	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series D6500 Series	Thread Size M52x2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
D6500-S08-S08	8 mm	8 mm	M16x1.5	14 mm
D6500-S10-S10		10 mm	M18x1.5	17 mm
D6500-S12-S12	L12	12 mm	M20x1.5	17 mm
D6500-S14-S14	14 mm	14 mm	M22x1.5	19 mm
D6500-S16-S16	S16	S16	M24x1.5	24 mm
D6500-S20-S20	20 mm	20 mm	M30x2	27 mm
D6500-S25-S25	S25	S25	M36x2	36 mm
D6500-S30-S30	30 mm	S30	M42x2	41 mm
