STR FEM M18x1.5 T12 X FEM M18x1.5 T12

Description & Features

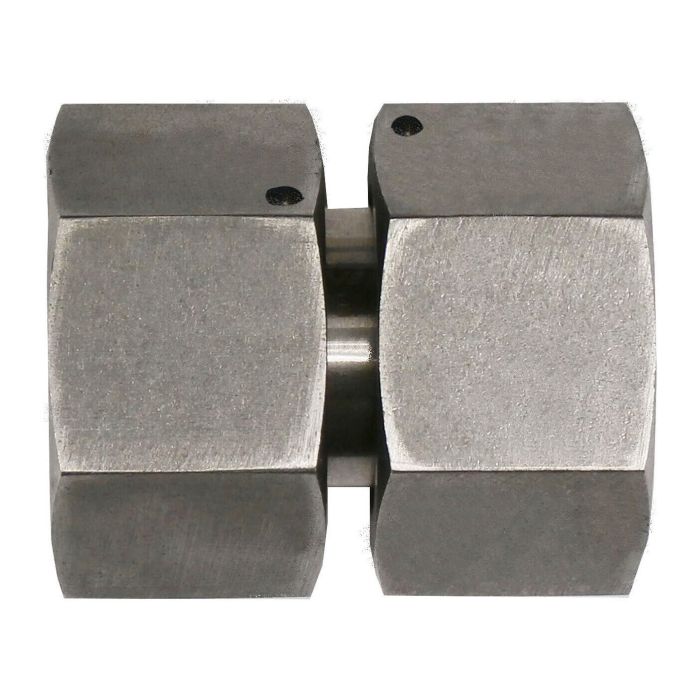

Designed for equal-end metric tube connections, the STR FEM M18x1.5 T12 X FEM M18x1.5 T12 is a straight steel union fitting with Female Metric Swivel DIN 24° connections on both ends, conforming to DIN 2353 and ISO 8434-1. Both connections accept 18mm OD light tube and thread at M26x1.5, with a 32mm hex on each end for secure wrenching.

Manufactured by Brennan Industries from straight steel, this fitting carries an NBR O-ring face seal and is rated to 400 bar dynamic pressure. At 43.3mm overall length, it suits compact hydraulic line assemblies where same-size swivel ends are required on both sides. California residents should note the applicable Prop 65 warning associated with this product.

SKU: D6565-L18-L18

Supplier Part Number (MPN): D6565-L18-L18

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D6565-L18-L18	Product Weight 0.39 lbs

Product Questions & Answers (1)

Question by: Dale W on Jul 9, 2025, 3:42 PM

Is this fitting gonna work with my existing 18mm OD tubing? Just wanna make sure before I order.

Answer by: Customer Support on Jul 10, 2025, 6:51 PM

Yes, this straight union fitting is designed for use with 18mm OD light tube, making it suitable for connecting same-size tubes in hydraulic systems. The female metric swivel DIN 24° connections on both ends ensure compatibility.
