S25MBT-S25MBT-S25FMS TEE W/O NUT&SLEEVE

Description & Features

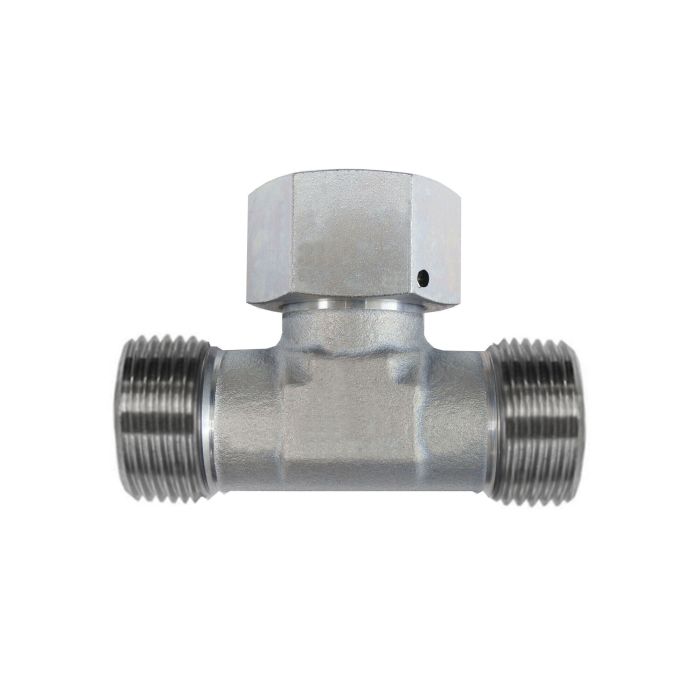

This steel forging tee, S25MBT-S25MBT-S25FMS TEE W/O NUT&SLEEVE, features three connections conforming to DIN 2353 and ISO 8434-1 standards. Each connection is designed for heavy 25mm OD tubing.

Connection types include two male metric 24-degree DIN seats and one female metric swivel DIN 24-degree. Each connection has a M36X2.0 thread size. This tee fitting is part of the D6600-X series and is suitable for a maximum dynamic pressure of 420 bar. The o-ring seal material is NBR.

SKU: D6600-S25-S25-S25-X

Supplier Part Number (MPN): D6600-S25-S25-S25-X

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D6600-S25-S25-S25-X	Product Weight 1.42 lbs

Product Questions & Answers (1)

Question by: Danny P on Nov 6, 2025, 4:44 PM

So this is just the tee itself, right? No nuts or sleeves come with it?

Answer by: Customer Support on Nov 8, 2025, 6:50 AM

That's correct. This tee fitting does not include the nuts and sleeves. It is just the forged steel tee body with the three DIN 2353/ISO 8434-1 connections.
