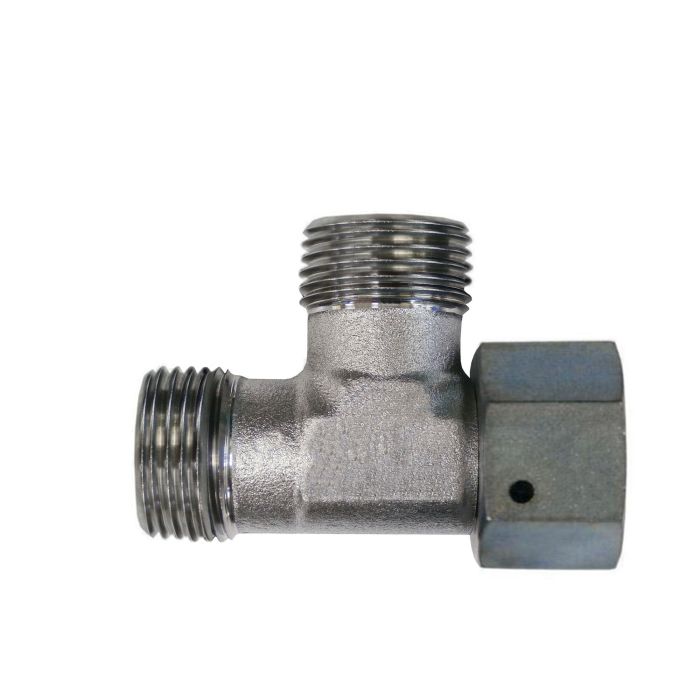

L12MBT-L12FMS-L12MBT TEE W/O NUT&SLEEVE

Designed for metric tube connections in hydraulic systems, the L12MBT-L12FMS-L12MBT Tee W/O Nut & Sleeve provides a three-port tee configuration with two male metric 24-degree Din seat ends and one female metric swivel Din 24-degree center port. All three connections conform to Din 2353, Din 3865, and ISO 8434-1 specifications, with M18x1.5 threads and compatibility with light 12mm OD tube.

Forged from steel with an Nbr O-ring seal, this fitting is rated to 400 bar dynamic pressure. The hex wrench flat measures 22mm, and the fitting is supplied without nuts or sleeves, allowing use with separately sourced Din compression components. Part of Brennan Industries' D6602-X series, it is suited for metric hydraulic tube assemblies requiring a reliable tee junction under high-pressure conditions. California residents should note this product is subject to Proposition 65 warnings.

SKU: D6602-L12-L12-L12-X

Supplier Part Number (MPN): D6602-L12-L12-L12-X
