L08MBT-02MBSPP ED STRAIGHT

Description & Features

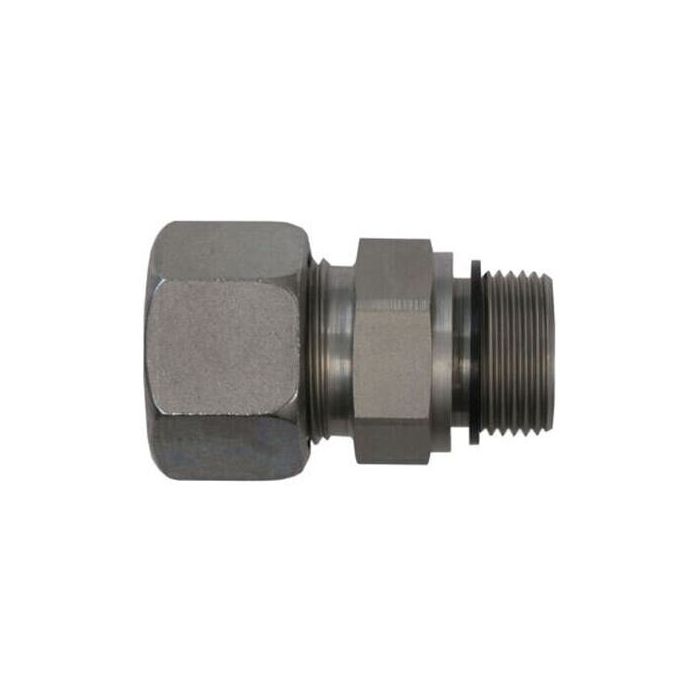

This straight steel fitting features a DIN metric tube compression connection for 8mm OD tubing on one end, conforming to DIN 2353 and ISO 8434-1 standards. The other end features a 1/8-28 male BSPP form E captive seal connection, manufactured to ISO 1179, ISO 8434-6, and BS 5200 specifications.

With a maximum dynamic pressure rating of 500 bar, the L08MBT-02MBSPP ED STRAIGHT is constructed from straight steel and includes an NBR O-ring seal. Its overall length measures 32.5 mm.

SKU: D7400-L08-02-ED

Supplier Part Number (MPN): D7400-L08-02-ED

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D7400-L08-02-ED	Product Weight 0.08 lbs

Product Questions & Answers (1)

Question by: Billy C on May 28, 2025, 6:58 PM

Will this fitting work with standard 8mm tubing, or is it some kinda proprietary size?

Answer by: Customer Support on May 30, 2025, 6:27 AM

It's designed to work with any standard 8mm OD tubing that meets DIN 2353 and ISO 8434-1 standards for DIN metric tube compression connections.
