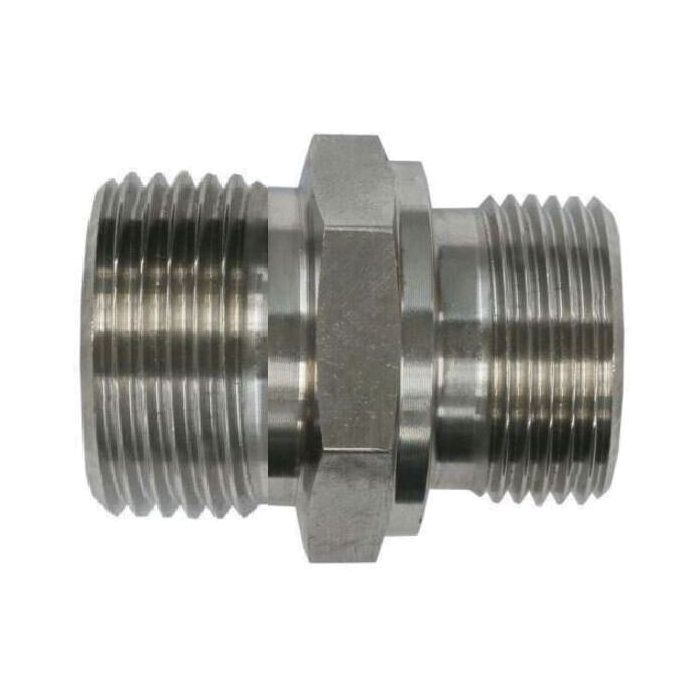

main product photo

BRENNAN male L08 X male -4 bspp stud

Ask A Question

Description & Features

A straight metric-to-BSPP adapter built for DIN-compliant hydraulic circuits, the Brennan Male L08 x Male -4 BSPP Stud connects an M14x1.5 male metric 24-degree DIN seat (per DIN 2353 / ISO 8434-1) to a 1/4-19 male BSPP Form B port (per ISO 1179 / ISO 8434-6 / BS 5200). The metric end is sized for light 8mm OD tube, with a 6mm thread ID on the BSPP side.

Constructed from straight steel and rated to 315 bar maximum dynamic pressure, this fitting is suited for medium-pressure hydraulic lines where DIN metric and BSPP port standards intersect. Overall length is 29mm, with a centerline length of 12mm. The stud-style configuration installs without a nut and sleeve, simplifying assembly in tight or inline connections. This fitting carries a Proposition 65 warning for California residents.

SKU: D7400-L08-04-CF-X

Supplier Part Number (MPN): D7400-L08-04-CF-X

Specifications

Brand
BRENNAN
Additional Information
Light-Duty, Without Nut and Sleeve
Connection Size 1
8 mm
Connection Size 2
1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male DIN Tube
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, DIN 3852-11, DIN 2353, ISO 1179-4, ISO 8434-1, ISO 8434-6
Dimensions
29 mm L
Finish
Nickel/Zinc-Plated
Fitting Type
Connector
Hex Size
19 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Series
D7400-CF-X Series
Thread Size
M14x1.5 x G1/4-19

Product Questions & Answers (1)

Question by: Brent W on Dec 16, 2025, 6:44 AM
Can this here Brennan fitting handle the pressure on my hydraulic system? It's runnin' pretty hard.
Answer by: Customer Support on Dec 18, 2025, 6:11 AM
This straight steel fitting is rated to a maximum dynamic pressure of 315 bar, making it suitable for medium-pressure hydraulic lines.
