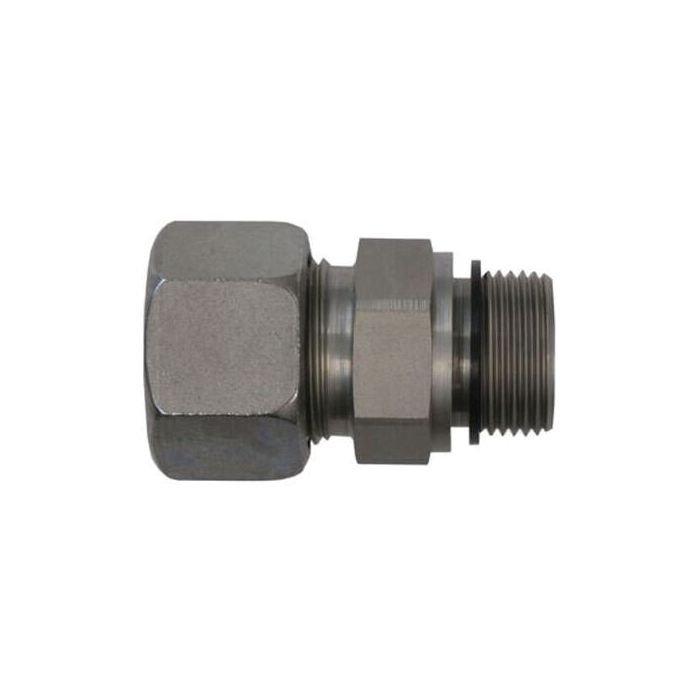

main product photo

L10MBT-04MBSPP ED STRAIGHT

Ask A Question

Description & Features

Rated to 500 bar dynamic pressure, this straight steel fitting connects a light 10mm tube OD DIN metric compression end (conforming to DIN 2353 / ISO 8434-1) to a 1/4-19 male BSPP Form E captive seal port (conforming to ISO 1179 / ISO 8434-6 / BS 5200). The L10MBT-04MBSPP Ed Straight is part of Brennan Industries' D7400-Ed series and is well suited to high-pressure hydraulic circuits where a DIN metric tube line must terminate at a BSPP ported component.

The compression end uses an M16x1.5 threaded nut, and the captive seal incorporates an Nbr O-ring for reliable static sealing at the port face. Overall length is 38 mm, with a 19 mm hex for wrench engagement. Steel construction throughout keeps the fitting compatible with standard hydraulic fluid media in demanding industrial environments.

SKU: D7400-L10-04-ED

Supplier Part Number (MPN): D7400-L10-04-ED

Specifications

Brand
BRENNAN
Additional Information
Light-Duty
Connection Size 2
1/4 in
Connection Type
Male BSP, Metric
Connection Type 1
DIN Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 3852-11, DIN 2353, ISO 1179-4, ISO 8434-1, ISO 8434-6
Dimensions
38 mm L
Finish
Nickel/Zinc-Plated
Fitting Type
Tube End Fitting
Hex Size
19 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
D7400-ED Series
Thread Size
M16x1.5 x G1/4-19

Product Questions & Answers (1)

Question by: Roger R on Oct 29, 2025, 5:54 PM
Can this handle hydraulic fluid without any issues?
Answer by: Customer Support on Oct 31, 2025, 3:34 PM
Steel construction throughout keeps the fitting compatible with standard hydraulic fluid media, so you shouldn't have any problems.
