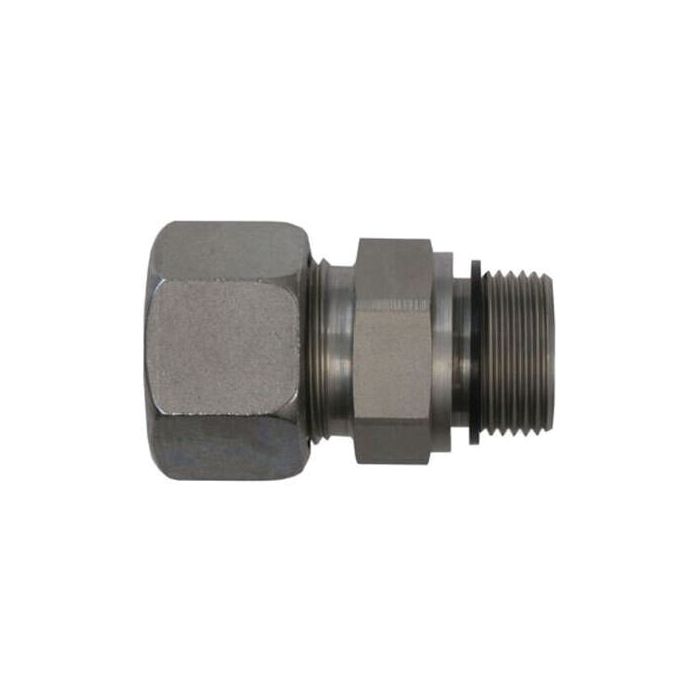

L10MBT-06MBSPP ED STRAIGHT

The L10MBT-06MBSPP ED STRAIGHT fitting is crafted from durable straight steel, designed to meet the rigorous demands of industrial applications. Featuring a DIN Metric Tube Compression connection for a light 10mm tube OD, this fitting ensures secure and efficient hydraulic connections. It is compatible with standards such as DIN 2353 and ISO 8434-1, guaranteeing reliable performance and ease of integration into existing systems.

This fitting also boasts a male BSPP Form E Captive Seal with a 3/8-19 thread size, conforming to ISO 1179 and BS 5200 standards for optimal sealing and pressure retention. With a maximum dynamic pressure rating of 500 bar, it is well-suited for high-pressure environments. The NBR O-ring seal material enhances leakage prevention, ensuring long-lasting service life and reliability.

SKU: D7400-L10-06-ED

Supplier Part Number (MPN): D7400-L10-06-ED
