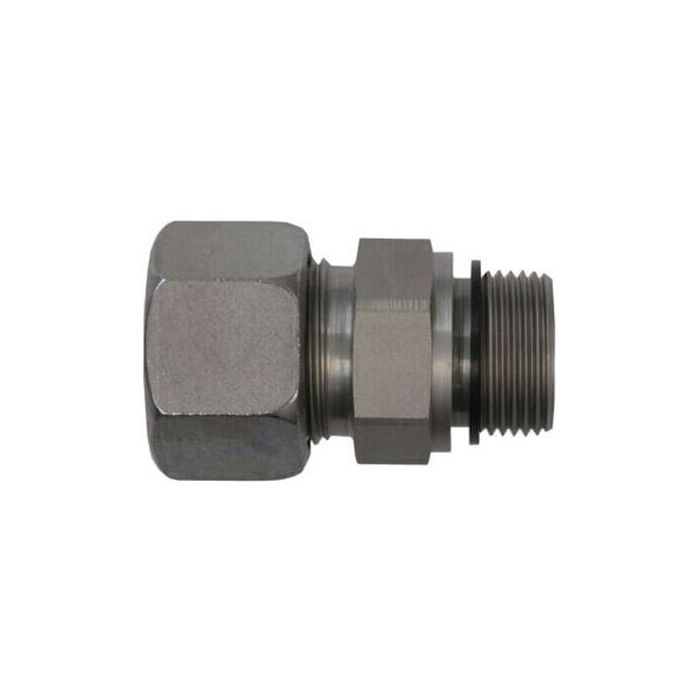

L10MBT-08MBSPP ED STRAIGHT

Designed for metric tube connections in high-pressure hydraulic systems, the L10MBT-08MBSPP ED Straight is a straight steel fitting combining a DIN metric tube compression end with a male BSPP Form E captive seal connection. The compression side conforms to DIN 2353 and ISO 8434-1, accepting 10mm OD light-series tube with an M16x1.5 thread, while the BSPP end meets ISO 1179, ISO 8434-6, and BS 5200 at a 1/2-14 thread size.

Manufactured from straight steel with an NBR O-ring seal, this fitting is rated to 500 bar dynamic pressure, making it well suited for demanding industrial hydraulic circuits. The Form E captive seal configuration supports reliable face sealing without the need for thread sealant. With an overall length of 42mm and a 19mm hex, the fitting is compact and straightforward to install with standard tooling. Part of the Brennan Industries D7400-ED series, it is subject to California Proposition 65 requirements.

SKU: D7400-L10-08-ED

Supplier Part Number (MPN): D7400-L10-08-ED
