BRENNAN ADAPTER

Description & Features

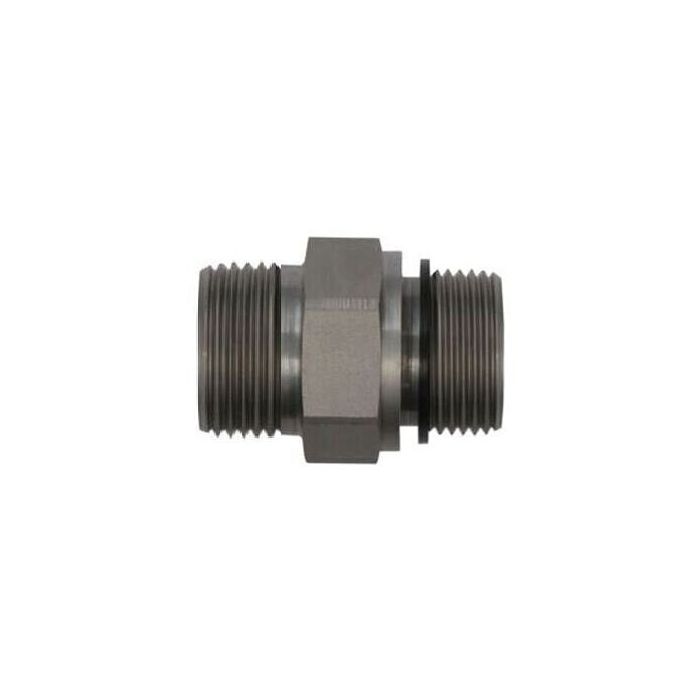

This straight steel Brennan Adapter features a Connection 1 as a male metric 24-degree DIN seat with M18X1.5 thread size, conforming to DIN 2353 and ISO 8434-1 specifications. Connection 2 is a male BSPP Form E captive seal with 3/8-19 thread size, adhering to ISO 1179, ISO 8434-6, and BS 5200 standards.

Designed for a maximum dynamic pressure of 400 bar, this D7400-ED-X series adapter includes an NBR O-ring seal. The Connection B1 is a male metric 24-degree DIN seat for light 12mm OD tube, while Connection B2 is a male BSPP Form E captive seal for 9.0 tube.

SKU: D7400-L12-06-ED-X

Supplier Part Number (MPN): D7400-L12-06-ED-X

Specifications

Brand BRENNAN	Additional Information Light-Duty, Without Nut and Sleeve	Connection Size 1 L12	Connection Size 2 3/8 in	Connection Type Male BSP, Male Metric	Connection Type 1 Male DIN Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 3852-11, DIN 2353, ISO 1179-4, ISO 8434-1, ISO 8434-6	Dimensions 31.5 mm L	Finish Nickel/Zinc-Plated	Fitting Type Tube End Fitting	Hex Size 22 mm	Material Steel	Material Construction 11SMnPb30 Steel	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series D7400-ED-X Series	Thread Size M18x1.5 x G3/8-19

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
D7400-L12-08-ED-X	L12	1/2 in	M18x1.5 x G1/2-14
D7400-L15-08-ED-X	L15	1/2 in	M22x1.5 x G1/2-14
D7400-L18-08-ED-X	18 mm	1/2 in	M26x1.5 x G1/2-14
D7400-L22-12-ED-X	L22	3/4 in	M30x2 x G3/4-14
D7400-L28-16-ED-X	L28		M36x2 x G1-11
