BRENNAN SS MBT X MBSPP

Description & Features

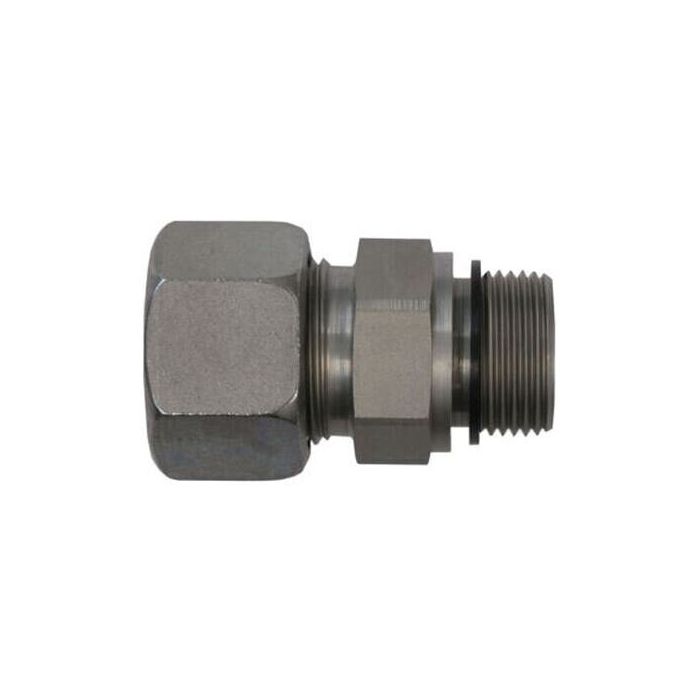

This straight stainless steel fitting features a DIN metric tube compression connection for light 12mm OD tube on one side, and a Male BSPP Form E Captive Seal connection with a 1/2-14 thread size on the other. The Brennan SS MBT X MBSPP is part of the D7400-ED series.

With a maximum dynamic pressure of 400 bar, the fitting includes a Viton O-ring seal. Centerline lengths are 13mm and 14mm, with overall lengths of 42mm and 34mm respectively. The C Hex 1 measures 22mm.

SKU: D7400-L12-08-ED-SS

Supplier Part Number (MPN): D7400-L12-08-ED-SS

Specifications

Additional Information Light-Duty	Connection Size 1 L12	Connection Size 2 1/2 in	Connection Type Male BSP, Metric	Connection Type 1 DIN Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 3852-11, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6	Dimensions 42 mm L	Fitting Type Tube End Fitting	Hex Size 27 mm	Material Stainless Steel	Material Construction 316Ti Stainless Steel	Seam Material FKM	Series D7400-ED Series	Thread Size M18x1.5 x G1/2-14

Product Questions & Answers (1)

Question by: Todd M on Nov 23, 2025, 6:45 PM

What size tubing does this fitting work with? I'm using metric, so just want to be sure.

Answer by: Customer Support on Nov 25, 2025, 6:16 AM

This Brennan fitting is designed for light 12mm outer diameter tubing on the DIN metric tube compression side.
