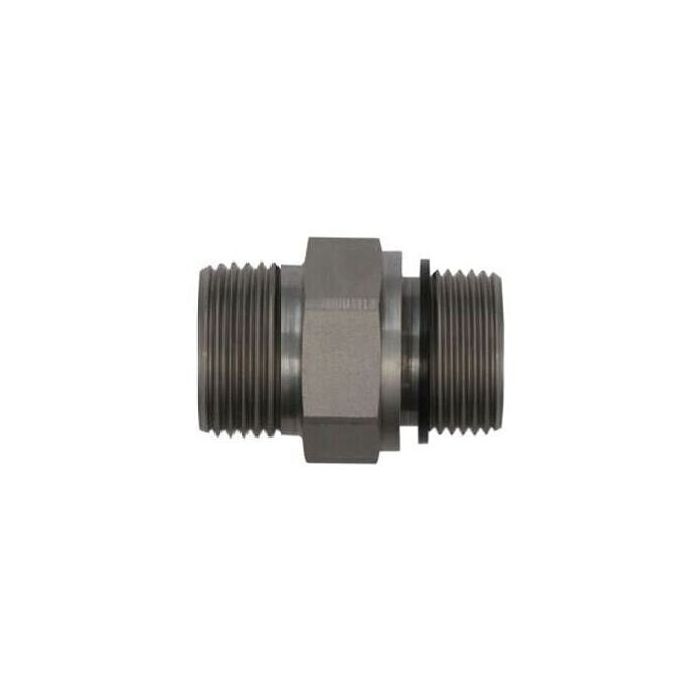

STR MALE M18x1.5 T12 X MALE BSP 1/2 IN

Ask A Question

Description & Features

Designed for mixed-standard hydraulic circuits, the STR Male M18x1.5 T12 x Male BSP 1/2 In straight adapter connects a Male Metric 24-degree Din seat (M18x1.5, conforming to Din 2353 / Iso 8434-1) on one end to a Male Bspp Form E captive seal (1/2-14, conforming to Iso 1179 / Iso 8434-6 / Bs 5200) on the other.

Machined from straight steel with an Nbr o-ring seal, this fitting is rated to 400 bar maximum dynamic pressure. The Form E captive seal design eliminates the need for a separate nut and sleeve on the Bspp end, simplifying assembly in space-constrained installations. Overall length is 34 mm, making it a compact solution for tight line routing.

Part of the Brennan Industries D7400-Ed-X series, this fitting carries a California Proposition 65 warning for residents of that state.

SKU: D7400-L12-08-ED-X

Supplier Part Number (MPN): D7400-L12-08-ED-X

Specifications

Brand
BRENNAN
Additional Information
Light-Duty, Without Nut and Sleeve
Connection Size 1
L12
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male DIN Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 3852-11, DIN 2353, ISO 1179-4, ISO 8434-1, ISO 8434-6
Dimensions
34 mm L
Finish
Nickel/Zinc-Plated
Fitting Type
Tube End Fitting
Hex Size
27 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
D7400-ED-X Series
Thread Size
M18x1.5 x G1/2-14

Product Questions & Answers (1)

Question by: Phil W on Mar 5, 2026, 7:07 PM
So, this thing connects different kinds of threads, right? Like, metric to BSPP?
Answer by: Customer Support on Mar 6, 2026, 9:11 PM
That's correct. This adapter joins a Male Metric 24-degree DIN seat to a Male BSPP Form E captive seal.
