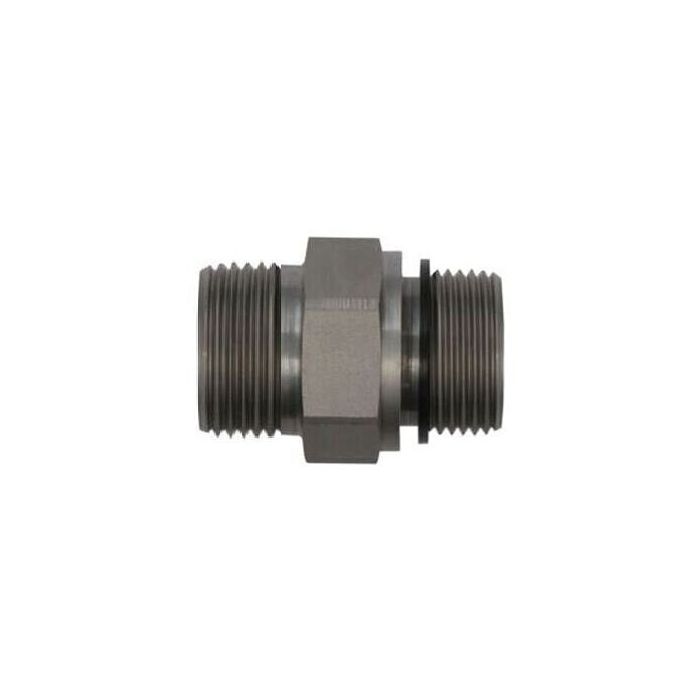

STR MALE M22x1.5 T15 X MALE BSP 1/2 IN

Description & Features

This straight steel fitting adapts between M22x1.5 metric and 1/2-14 Male BSPP Form E captive seal connections. This STR MALE M22x1.5 T15 X MALE BSP 1/2 IN fitting is manufactured with a centerline length of 14.0mm on both sides.

Designed to DIN 2353, ISO 8434-1 and ISO 1179, ISO 8434-6, BS 5200 standards, this fitting has a maximum dynamic pressure of 400 bar. It is constructed from straight steel with an NBR O-ring seal.

SKU: D7400-L15-08-ED-X

Supplier Part Number (MPN): D7400-L15-08-ED-X

Specifications

Brand BRENNAN	Additional Information Light-Duty, Without Nut and Sleeve	Connection Size 1 L15	Connection Size 2 1/2 in	Connection Type Male BSP, Male Metric	Connection Type 1 Male DIN Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 3852-11, DIN 2353, ISO 1179-4, ISO 8434-1, ISO 8434-6	Dimensions 35 mm L	Finish Nickel/Zinc-Plated	Fitting Type Tube End Fitting	Hex Size 27 mm	Material Steel	Material Construction 11SMnPb30 Steel	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series D7400-ED-X Series	Thread Size M22x1.5 x G1/2-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
D7400-L12-06-ED-X	L12	3/8 in	M18x1.5 x G3/8-19
D7400-L12-08-ED-X	L12	1/2 in	M18x1.5 x G1/2-14
D7400-L18-08-ED-X	18 mm	1/2 in	M26x1.5 x G1/2-14
D7400-L22-12-ED-X	L22	3/4 in	M30x2 x G3/4-14
D7400-L28-16-ED-X	L28		M36x2 x G1-11
