L15MBT-08MBSPP ED STRAIGHT

Ask A Question

Description & Features

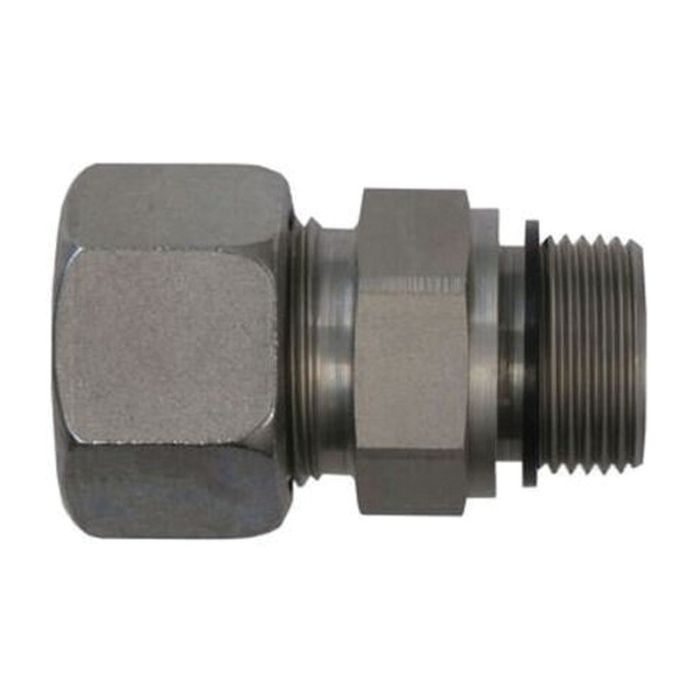

Manufactured by Brennan Industries, this 1/2 in. straight male connector is designed for use in hydraulic line and fitting assemblies where a reliable, compact straight-thread connection is required. The L15MBT-08MBSPP ED STRAIGHT configuration indicates a male BSP parallel thread end, suited to systems that call for leak-free straight connections without tapered thread engagement.

As a Brennan Industries fitting, this connector meets the quality standards expected in demanding industrial hydraulic applications. The straight body design keeps the connection profile low-clearance and direct, making it a practical choice where space or routing constraints favor a non-angled termination point.

SKU: D7400-L15-08-ED

Supplier Part Number (MPN): D7400-L15-08-ED

Specifications

Brand
BRENNAN
Connection Size 1
L15
Connection Size 2
1/2 in
Connection Type
Male BSP, Metric
Connection Type 1
DIN Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
DIN 2353, DIN 3852-11
Dimensions
43.5 mm L
Finish
Zinc Nickel-Plated
Fitting Type
Tube End Fitting
Hex Size
27 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Operating Temperature
-40 to 250 deg F
Series
D7400-ED Series
Thread Size
M22x1.5 x 1/2-14

Product Questions & Answers (1)

Question by: Danny R on Dec 11, 2025, 12:14 PM
What size is the thread on this fitting? I need to make sure it'll match up with my existing hydraulic lines.
Answer by: Customer Support on Dec 13, 2025, 6:44 AM
It's got a 1/2 inch BSP parallel male thread, so it should fit right into any system needing that straight-thread type of connection.
