RECTO - BSPP 1/2 - 26X1.5MM

Ask A Question

Description & Features

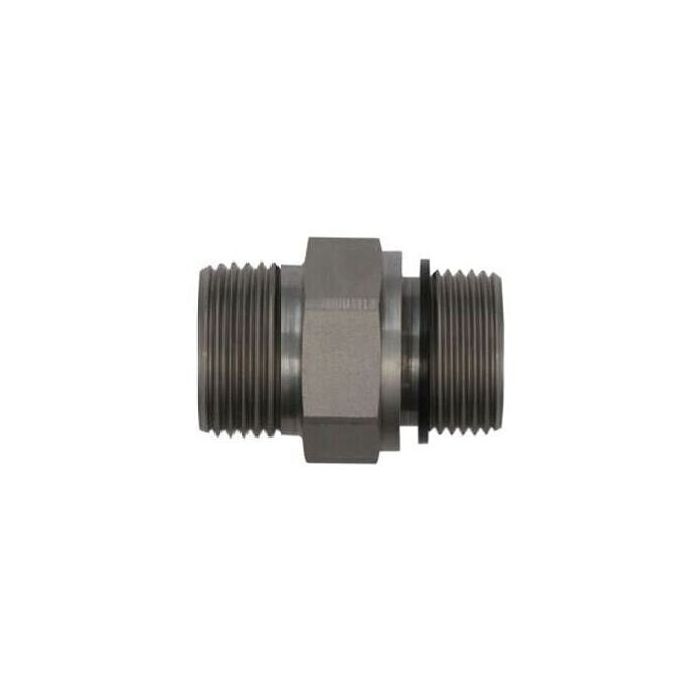

This straight steel fitting features a male Metric 24 degree DIN seat on one end and a male BSPP Form E Captive Seal on the other. The Metric connection conforms to DIN 2353 and ISO 8434-1 standards, while the BSPP connection adheres to ISO 1179, ISO 8434-6, and BS 5200 specifications.

With a maximum dynamic pressure of 400 bar, this RECTO - BSPP 1/2 - 26X1.5MM fitting is designed for demanding hydraulic applications. The Metric connection has a M26X1.5 thread size and an 18mm light tube OD. The BSPP connection has a 1/2-14 thread size.

SKU: D7400-L18-08-ED-X

Supplier Part Number (MPN): D7400-L18-08-ED-X

Specifications

Brand
BRENNAN
Additional Information
Light-Duty, Without Nut and Sleeve
Connection Size 1
18 mm
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male DIN Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 3852-11, DIN 2353, ISO 1179-4, ISO 8434-1, ISO 8434-6
Dimensions
36 mm L
Finish
Nickel/Zinc-Plated
Fitting Type
Tube End Fitting
Hex Size
27 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
D7400-ED-X Series
Thread Size
M26x1.5 x G1/2-14

Product Questions & Answers (1)

Question by: Earl F on Dec 21, 2025, 11:22 AM
What's the max pressure this fitting can handle? Just wanna make sure it'll hold up in my system.
Answer by: Customer Support on Dec 22, 2025, 7:46 PM
This fitting is rated for a maximum dynamic pressure of 400 bar.
