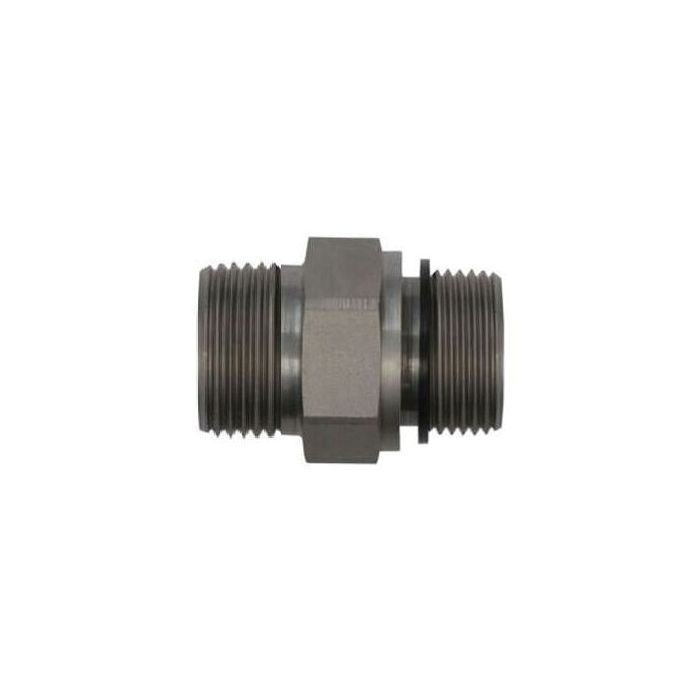

main product photo

Metrico 30x2.0 - Tubo 22mm

Ask A Question

Description & Features

This straight steel fitting features a Metrico 30x2.0 connection on one end designed for light 22mm OD tubing, conforming to DIN 2353 and ISO 8434-1 standards as a male metric 24-degree DIN seat.

The opposite end features a 3/4-14 male BSPP Form E captive seal, adhering to ISO 1179, ISO 8434-6, and BS 5200 specifications, with an 18.0mm thread ID. This Metrico 30x2.0 - Tubo 22mm fitting is part of the D7400-ED-X series and has a maximum dynamic pressure rating of 250 bar. The O-ring seal is constructed from NBR material.

SKU: D7400-L22-12-ED-X

Supplier Part Number (MPN): D7400-L22-12-ED-X

Specifications

Brand
BRENNAN
Additional Information
Light-Duty, Without Nut and Sleeve
Connection Size 1
L22
Connection Size 2
3/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male DIN Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 3852-11, DIN 2353, ISO 1179-4, ISO 8434-1, ISO 8434-6
Dimensions
40 mm L
Finish
Nickel/Zinc-Plated
Fitting Type
Tube End Fitting
Hex Size
32 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
D7400-ED-X Series
Thread Size
M30x2 x G3/4-14

Product Questions & Answers (1)

Question by: Todd M on Aug 25, 2025, 8:51 PM
Will this here fitting work with regular 22mm tubing, or does it have to be a special kind?
Answer by: Customer Support on Aug 27, 2025, 11:09 AM
This fitting is designed for light 22mm OD tubing, and it conforms to DIN 2353 and ISO 8434-1 standards.
