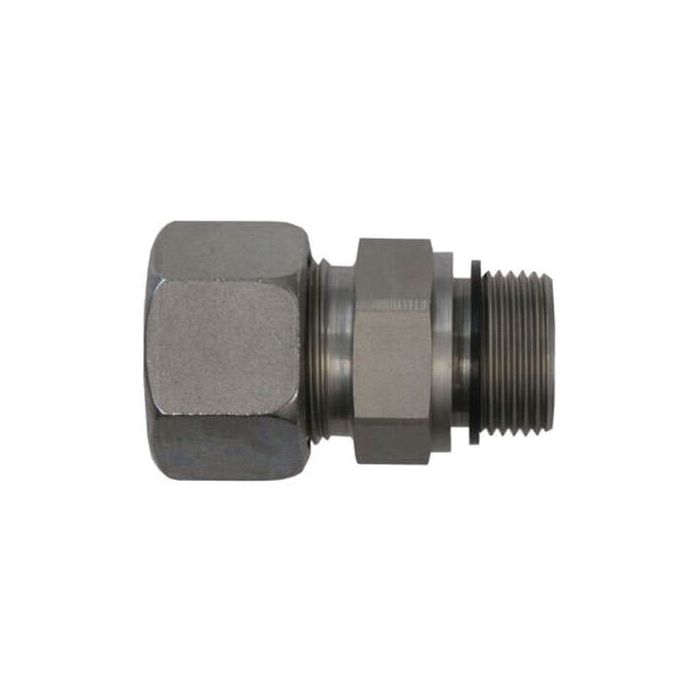

main product photo

L22MBT-12MBSPP ED STRAIGHT

Ask A Question

Description & Features

Manufactured by Brennan Industries, this straight hydraulic fitting is designed for reliable inline connections in industrial fluid power systems. The L22MBT-12MBSPP ED STRAIGHT configuration indicates a male British Standard Pipe Parallel (BSPP) to male thread straight adapter, suited for use where a direct, non-angled connection is required between components.

Brennan Industries fittings are commonly used in hydraulic circuits, fluid transfer lines, and mobile or stationary equipment where secure, leak-free thread engagement is essential. The straight body design minimizes flow restriction and keeps the connection path compact.

SKU: D7400-L22-12-ED

Supplier Part Number (MPN): D7400-L22-12-ED

Specifications

Brand
BRENNAN
Additional Information
Light-Duty
Connection Size 1
L22
Connection Size 2
3/4 in
Connection Type
Male BSP, Metric
Connection Type 1
DIN Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
DIN 3852-11, DIN 2353
Finish
Nickel/Zinc-Plated
Fitting Type
Tube End Fitting
Hex Size
32 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Operating Temperature
-40 to 250 deg F
Series
D7400-ED Series
Thread Size
M30x2 x G3/4-14

Product Questions & Answers (1)

Question by: Travis T on Mar 18, 2026, 7:17 PM
What size is this fitting? I need to make sure it'll match up with my current setup.
Answer by: Customer Support on Mar 20, 2026, 6:06 AM
This fitting is designed with a male British Standard Pipe Parallel (BSPP) connection. The size is indicated by the -12MBSPP designation in the product name.
