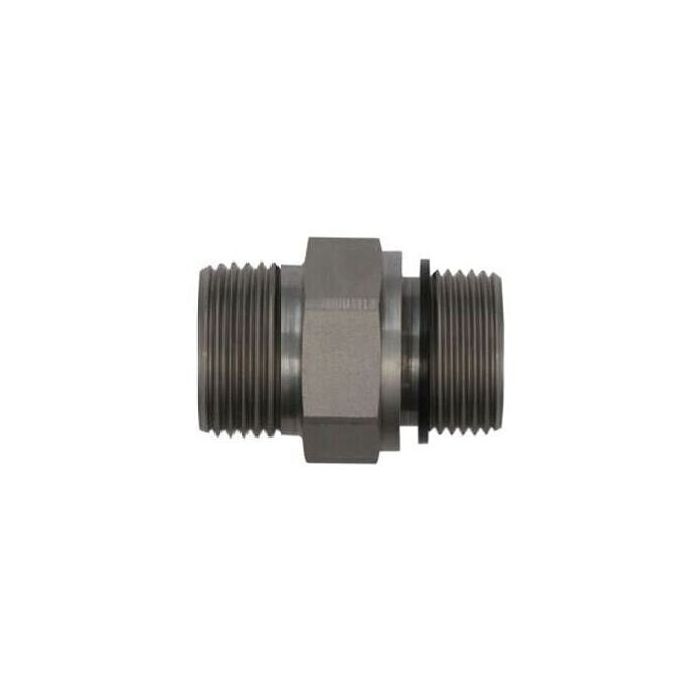

main product photo

L28MBT-16MBSPP ED STRT W/O NUT & SLEEVE

Ask A Question

Description & Features

Designed for high-performance hydraulic systems, the L28MBT-16MBSPP ED STRT W/O NUT & SLEEVE fitting offers robust construction with straight steel material. This component features a reliable Male Metric 24 Degree DIN Seat on Connection 1, adhering to DIN 2353 and ISO 8434-1 standards, ensuring compatibility with Light 28mm Tube OD. The Male BSPP Form E Captive Seal on Connection 2, compliant with ISO 1179 and BS 5200 standards, provides a secure fit with a thread size of 1-11. This fitting supports a maximum dynamic pressure of 250 bar, making it suitable for demanding industrial applications.

Precision-engineered for durability, it includes an NBR O-ring seal, enhancing its resistance to hydraulic fluids. With an overall length of 43.0 mm and a centerline length of 18.0 mm, this fitting is compact yet effective. Ideal for use in various industrial settings, this product meets rigorous quality standards set by Brennan Industries. Its adaptability to different systems ensures seamless integration and reliable performance.

SKU: D7400-L28-16-ED-X

Supplier Part Number (MPN): D7400-L28-16-ED-X

Specifications

Brand
BRENNAN
Additional Information
Light-Duty, Without Nut and Sleeve
Connection Size 1
L28
Connection Type
Male BSP, Male Metric
Connection Type 1
Male DIN Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 3852-11, DIN 2353, ISO 1179-4, ISO 8434-1, ISO 8434-6
Dimensions
43 mm L
Finish
Nickel/Zinc-Plated
Fitting Type
Tube End Fitting
Hex Size
41 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
D7400-ED-X Series
Thread Size
M36x2 x G1-11

Product Questions & Answers (1)

Question by: Dustin C on Jun 17, 2025, 10:17 AM
So, this doesn't come with the nut and sleeve, right? Just want to make sure I order those separate.
Answer by: Customer Support on Jun 18, 2025, 12:30 PM
That's correct. This fitting is supplied without the nut and sleeve, so you'll need to order those separately to complete the connection.
