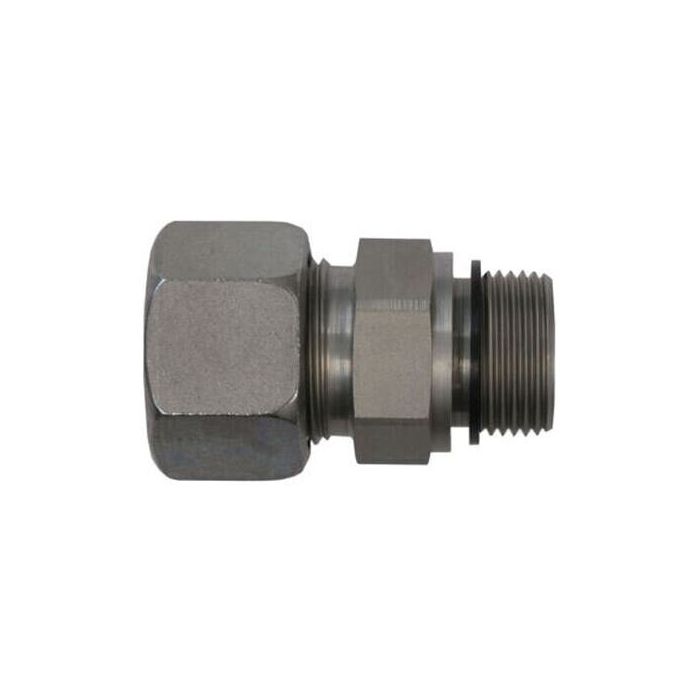

BRENNAN SS MBT X MBSPP

Designed for stainless steel hydraulic line assemblies, the Brennan SS MBT x MBSPP is a straight fitting that joins a DIN metric tube compression end to a male BSPP Form E captive seal end. The compression side accepts light 42mm OD tube per DIN 2353 / ISO 8434-1, with an M52×2.0 thread, while the BSPP end conforms to ISO 1179, ISO 8434-6, and BS 5200 with a 1-11 thread size and 23.0mm thread ID.

Constructed from straight stainless steel within the Brennan D7400-Ed series, this fitting carries a maximum dynamic pressure rating of 250 bar. The Viton® O-ring captive seal on the BSPP end supports reliable sealing in demanding fluid power circuits. Overall length is 60.0mm, with a hex across flats of 60mm, making it suited to installations where material compatibility and pressure integrity are both required. California residents should note the applicable Prop 65 warning.

SKU: D7400-L42-16-ED-SS

Supplier Part Number (MPN): D7400-L42-16-ED-SS
